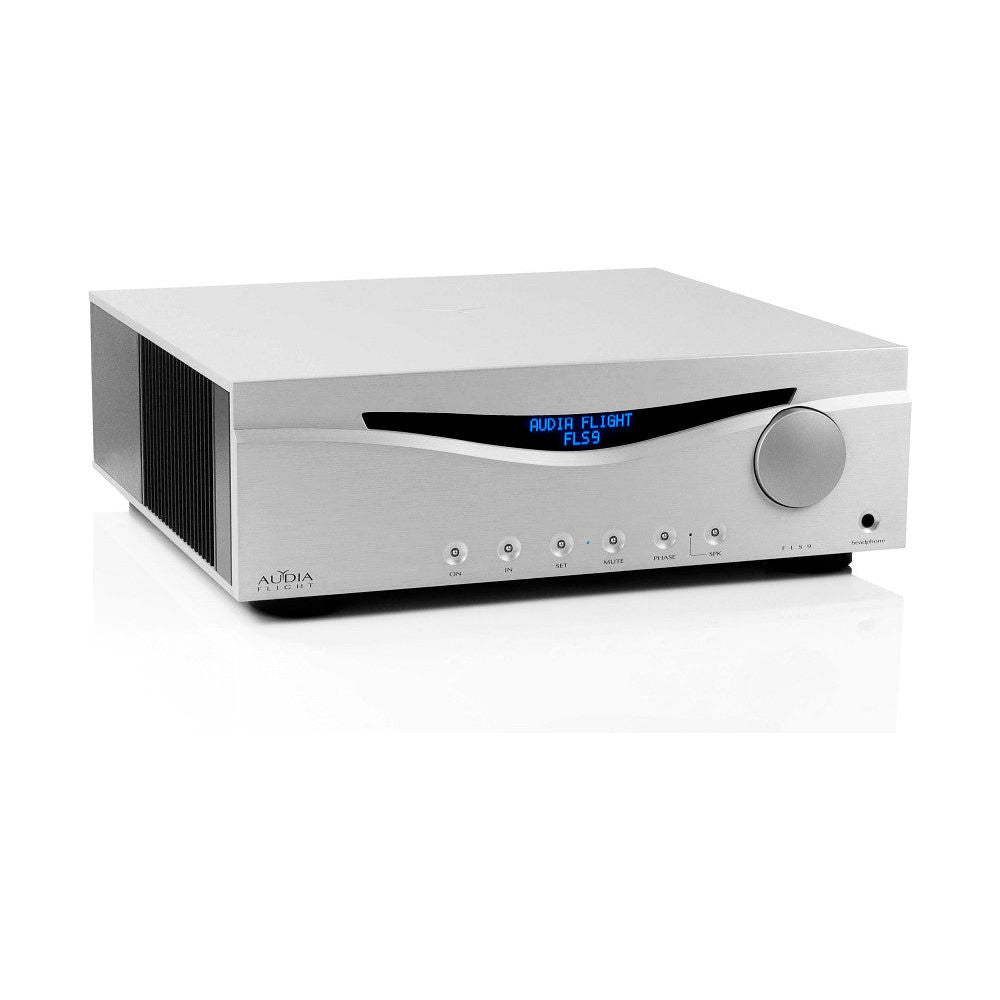

The FLS 9 is our latest creation in hi-end integrated amplifiers and is the best choice for a mid priced hi-end integrated amplifier. It shares with FLS 1 model same fully balanced preamplifier stage boards. Power channels use 12 highly selected power devices, 8 power supply circuits with extra low impedance and very low noise, high quality capacitors (120.000 uF), special printed boards with extra thick copper layer, 1000 W shielded audio toroidal transformer. The150 Wrms (8 ohm) output power follows the acclaimed Audia tradition of speed, power, driving capability and control ability. The FLS 9 is also suitable for less efficient, impedance critical (down to 2 ohm) loudspeaker systems. The aluminum chassis, with engraved “Audia Flight” logo on top cover, and solid aluminum milled remote control are brushed and anodized. It possible to install two optional cards, plug and play, very easy to install in separate slots externally accessible. The elegant chassis is full brushed aluminum with engraved logo on top cover, the large display is OLED blue. Four special composite pads with NBR rubber spheres ensure the best vibration control. An aluminum brushed and anodized remote control is also supplied as standard. FLS 9 is available in silver and black finish. Optional Cards Include -MM and MC unbalanced inputs phono board. -RCA board (2 RCA additional inputs). -DAC board. One asynchronous USB input (with Galvanic isolation) 32 bit 384KHz and DSD 512. Four digital inputs (2x optical, 1x AES/EBU, 1x SPDIF). 32bit, 192KHz (with Galvanic isolation). Specifications Output power per channel Wrms: 150/290/500 (8/4/2 ohm) Inputs: 3 unbalanced (RCA), 2 balanced (XLR) Outputs: 1 unbalanced (RCA), 1 balanced (XLR), 1 REC unbalanced (RCA) Gain range: -90dB / +10dB Gain resolution: 0,5dB Frequency response (-3dB) 0,3 Hz ÷ 500 KHz THD < 0,05 % S/N Ratio 110 dB Input impedance : 47 Kohm Output impedance : < than 1 ohm Damping factor (@ 8 Ohm) > 500 Main voltage AC (50-60 Hz): 100, 110-115, 220-230, 240 V Headphone output power per channel: 12W Wrms on 8 ohm, 10Vrms Stand-by Power consumption less than 1 W Power consumption 650W Dimensions and weight 450x150x440mm (W x H x D) – 25.5 kg Shipping dimensions and weight 570x280x560mm (W x H x D) – 31kg
