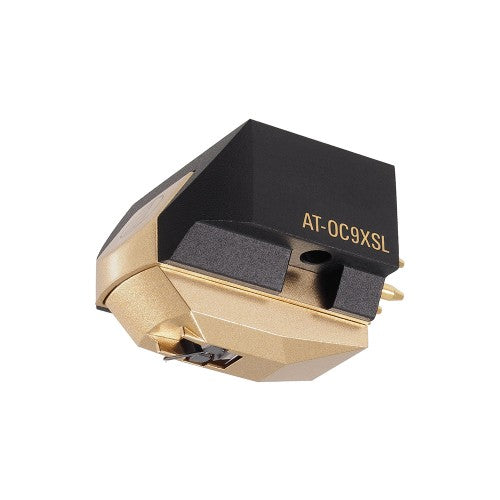

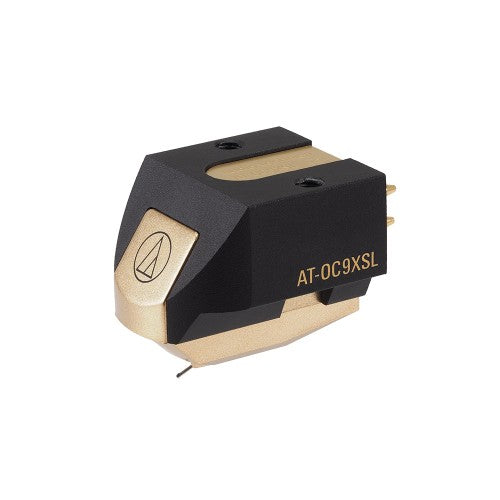

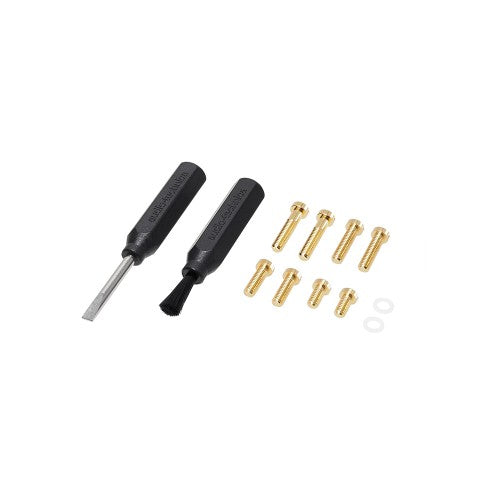

Features a Nude Special Line Contact stylus and boron cantilever Neodymium magnet and permendur yoke for increased magnetic energy Features threaded inserts in the cartridge body Aluminium body minimizes unwanted vibration for reduced resonance PCOCC is used for the coils to achieve pure signal transmission Specs Model AT-OC9XSL Mounting 1/2” centers / Threaded inserts Frequency Response 20 to 50,000 Hz Body Material Aluminium Channel Separation 28 dB (1 kHz) Output Channel Balance 0.5 dB (1 kHz) Output Voltage 0.4 mV (at 1 kHz, 5 cm/sec) Vertical Tracking Angle 20 degrees Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g) Stylus Shape Special Line Contact Stylus Size 1.5 x 0.28 mil Stylus Construction Nude rectangular shank Cantilever 0.28 mm Ø nude boron Coil Impedance 12 Ohms (1 kHz) Coil Inductance 25 μH (1 kHz) DC Resistance 12 Ohms Static Compliance 22 x 10 – 6 cm / dyne Dynamic Compliance 18 x 10 – 6 cm / dyne (100 Hz) Terminal Pins Brass Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.) Recommended Load Impedance Min 100 Ohms Cartridge Weight 7.6 g Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm Accessories Included 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector
