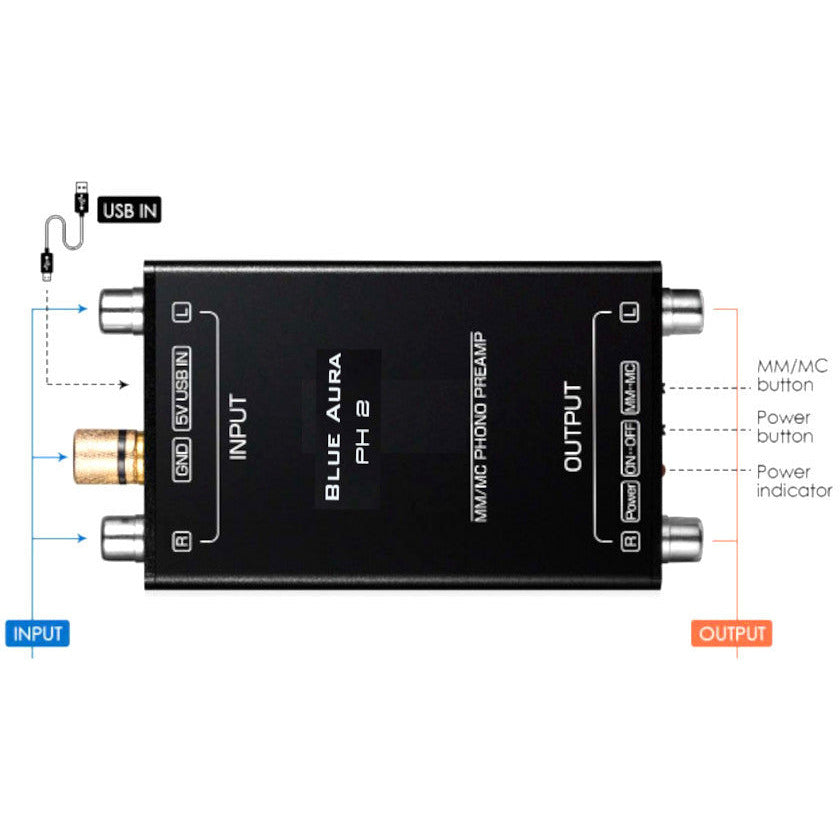

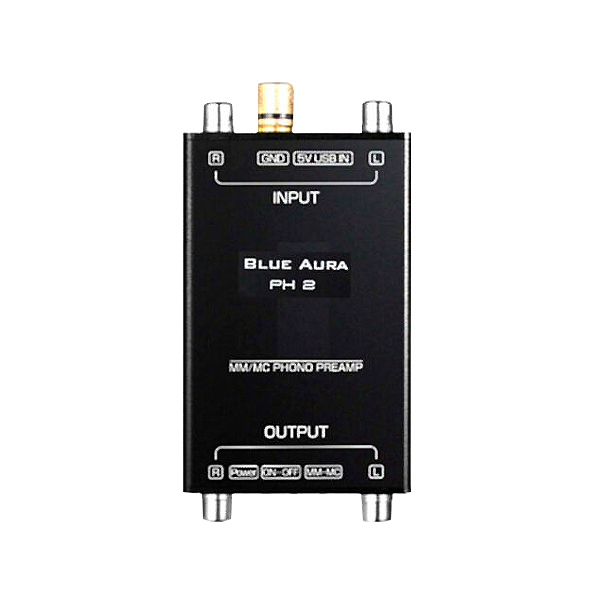

The Blackline PH2 is a high performance phono-pre-amplifier that supports both moving coil and moving magnet cartridges. Although some amplifiers have an integral phono stage, PH2 is a dedicated phono pre-amplifier that offers an audible sound upgrade once connected between your Turntable and Amplifier. PH2 can easily fit into any existing audio system where a phono stage is required. Even if your existing amplifier has a built in phono stage, PH2 can be connected to Line In and will offer an improved performance as most built in phono stages are not of high quality. A new addition to our Blackline range, PH2 sits between your amplifier and Turntable and can be switched between moving coil and moving magnet cartridges. Fundamentally, moving magnet cartridges have a higher level of amplification compared to moving coil type. The phono stage increases the signal level from the turntable cartridge to the amplifier. PH2 will provide a sound improvement over traditional inbuilt phono pre-amplifiers. Specs M/M M/C S/N Ratio (A Weighting) 85 dB 74 dB Input Impedance 47K Ω 1K Ω Output Impedance 100 Ω 100 Ω Channel Balance 2 dB 2 dB Distortion (5mV input) <0.015% <0.015% Gain (1 KHz) 40 dB 55 dB RIAA Accuracy ± 2 dB ± 2 dB Max Input 5 mV 0.5 mV Max Output 600 mV 200 mV Sensitivity 110 370 Input 5V USB Dimensions: 95 x 58 x 14mm (L x W x H Net Weight75 g Colour: Black
