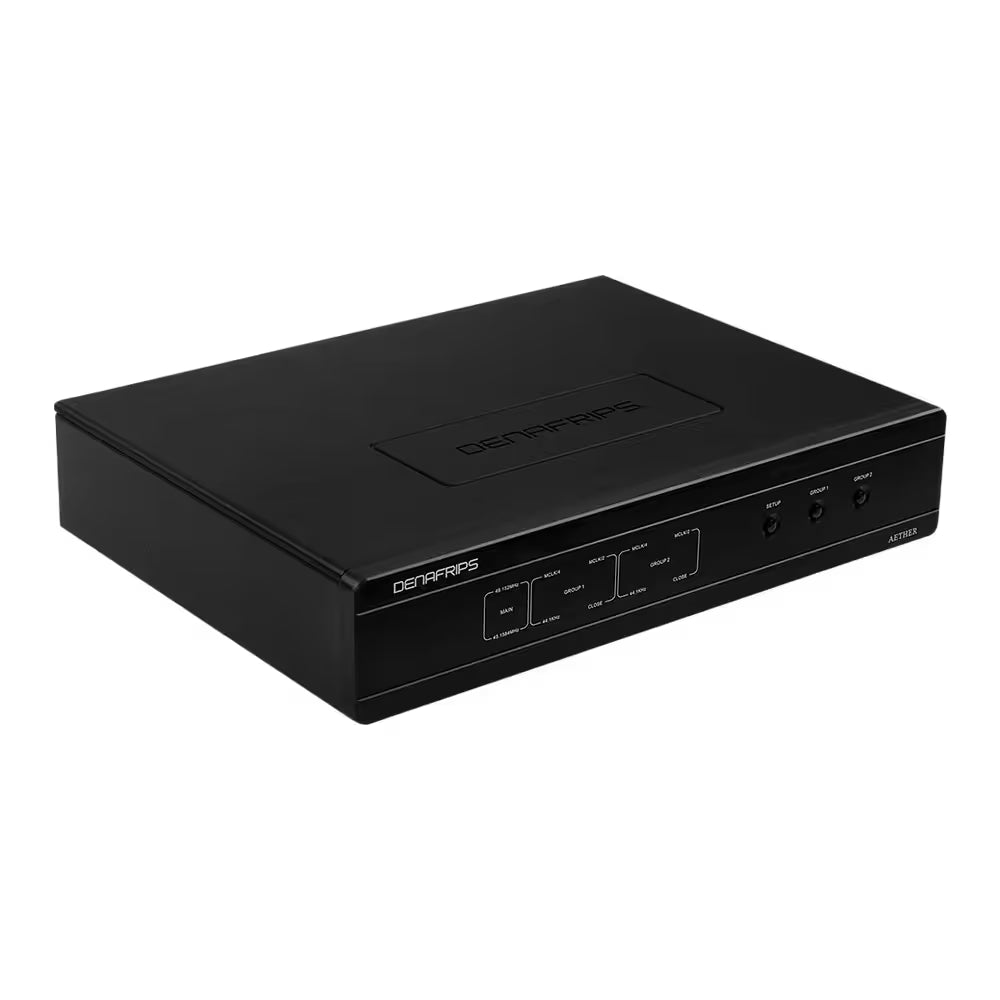

Aether MCLK, flagship DENAFRIPS Master Clock Generator designed for High-End Audio applications. Our design goal was to push the limits of what audio equipment can be. The quality of the CLOCK is one of the profound elements and foundation of superior sonic performance. The lower the jitter, phase noise, as well as stability of the clock, often, improves the sound quality of the digital audio equipment. HIGH PRECISION OCXO Aether is equipped with high precision Oven Controlled Crystal Oscillators (45.1548MHz, 49.152Mhz), superior to that of Terra MCLK. The OCXOs arepowered up by high current multi-stages Linear Power Supply with oversized O-Core Transformer. Lots of attentions were put in to increase the performance factors of the power supply – low noise, high slew rate and high current. These provide the OCXO adequate DC supply, hence, results in great thermal stability and low level crosstalk. DESIGNED FOR HIGH END AUDIO The MCLK1/2/3/4 CLOCK-OUT frequencies are configurable manually by the intuitive front panel to suit various application. CLOCK OUT (Fixed) 45.1584MHz, 49.152MHz CLOCK OUT (Adj) 44.1kHz, 48kHz 11.2896MHz, 12.288MHz 22.5792MHz, 24.576MHz Specifications Precision Oven Controlled Crystal Oscillator OCXO Adjustable Output Frequencies Small Form Factor CLOCK-OUT (Fixed) 45.1548MHz x 2 49.152Mhz x 2 CLOCK-OUT (Adjustable) 44.1kHz, 48kHz 11.2896MHz, 12.288MHz 22.5792MHz, 24.576MHz Output Connector BNC, 75ohms AC Power Requirement: 100-240VAC, 50/60Hz (Manual Selector) Power Consumption: ≤20W Dimension : 340W x 260D x 66H mm (Feet +18mm) Package Content: MCLK. No remote control & power cord. Weight : 6 Kg
