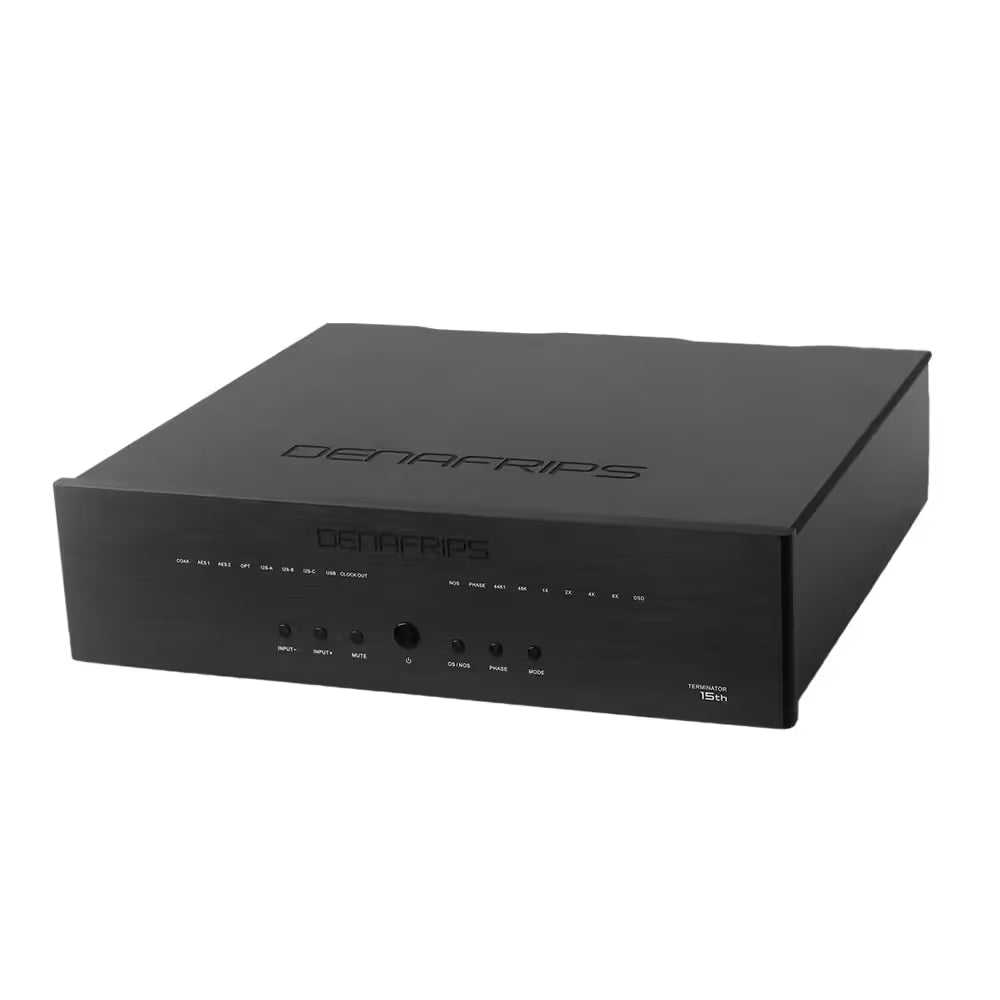

DIGITAL / ANALOGUE ISOLATION The TERMINATOR 15th features complete isolation between the Digital Processing Board and the R-2R ladder network arrays. This design, physically linked by the OCXO module, minimizes noise and enhances the signal-to-noise ratio. OVEN-CONTROLLED CRYSTAL OSCILLATORS – OCXO Equipped with dual OCXOs at 45.1584 MHz and 49.152 MHz, the TERMINATOR 15th ensures ultra-low phase noise and exceptional accuracy. These OCXOs are housed in a metal casing and powered by a specially designed, shielded power supply for optimal stability. ADAPTIVE FIFO BUFFER RECLOCKING The adaptive FIFO buffer stores digital audio data, which is read using the ultra-low phase noise OCXOs. This data is converted to analog signals by true balanced R-2R ladder network arrays, with high-precision resistors ensuring linearity. HIGH PRECISION OCXO CLOCK-OUT The Terminator 15th features a high-precision OCXO clock-out, designed to synchronize with various audio frequencies. Audio Frequencies: 44.1 kHz, 48 kHz Clock Frequencies: 22.5792 MHz, 24.576 MHz, 45.1584 MHz, 49.152 MHz Experience unparalleled accuracy and synchronization in your audio setup with the Terminator 15th. THE FOUNDATION OF SUPERIOR SOUND A dedicated Linear Power Supply Unit is encased in a robust 1.5mm thick metal alloy enclosure. An additional steel plate divider between the DAC motherboard and the PSU box enhances EMI/EMF shielding. INNOVATIVE BOX-WITHIN-BOX DESIGN This design eliminates issues associated with dual-box solutions, highlighting the meticulous design and attention to detail from DENAFRIPS. PREMIUM COMPONENTS Dual O-Core Transformers for Digital and Analogue sections. Ultra-Low ESR, Long Endurance Reservoir Capacitors. Multi-stage Super Linear Power Supply for ultra-precise, low ripple power delivery. TTE DENAFRIPS TERMINATOR 15th DAC Redefines elegance and performance with its sleek, robust design, meticulously crafted from high-quality brushed aluminum. With its classic dimensions, it integrates seamlessly into any high-end audio setup, exuding an unmistakable premium feel. DENAFRIPS TERMINATOR 15th DAC: Key Features High-Quality Construction: Classic and elegant appearance with a brushed aluminum chassis. Sophisticated Design: Crafted from a high-purity gold, silver, and copper alloy, featuring dual O-core AC transformers for clean power and isolated digital/analog sections to reduce noise. High Precision OCXO Clock-Out: Equipped with dual oven-controlled crystal oscillators (OCXO) for ultra-low phase noise and high accuracy. Adaptive FIFO Buffer Reclocking: Minimizes jitter for precise digital-to-analog conversion. The new benchmark of Denafrips’ flagship DAC. All in the Terminator 15th. Specifications Feature Details Architecture Proprietary R2R + DSD R2R + DSD True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) R-2R Network Arrays Matched Precision Thin Film 0.005% Power Supply Encapsulated Flagship Ultra Low Noise Transformers High Purity Gold+Silver+Copper Alloy AC Transformers Crystals High-end Oven Controlled Crystals OCXO Reclocking Adaptive FIFO Buffer Reclocking Signal Processing Direct Digital Signal Processing FPGA DSD/PCM Support DSD1024, PCM1536 Supports On USB & I²S Input USB Audio Solution Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU USB Driver (Windows) Licensed Thesycon USB Driver USB Driver (Mac & Linux) Driverless Inputs Dual AES/EBU, Coax, TOSLink, USB2.0 Type B, I²S via HDMI LVDS, I²S via RJ45 LVDS, I²S via RJ45 LVCMOS Filters Sharp/Slow Filters Option I²S Configuration Pinout Configuration, DSD Channel Swap Configuration DSD (Coax/AES/Opt) DSD64 (DoP) DSD (USB/I²S) DSD1024* PCM (All Inputs) 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz PCM (USB/I²S) 1536kHz* Sampling Mode Non-Oversampling NOS / Oversampling OS Analogue Output (RCA) 2.0Vrms, 625 Ω Analogue Output (XLR) 4.0Vrms, 1250 Ω Clock Output BNC 75Ω 44.1KHz, 48KHz, 22.5774Mhz, 24.576Mhz, 45.1548MHz, 49.152Mhz Frequency Response 20-40KHz -0.2dB THD 0.05%(RCA), 0.002%(XLR) S/N Ratio 110dB(RCA), 120dB(XLR) Dynamic Range >132dB Stereo Crosstalk -110dB AC Power Requirement 100-240VAC, 50/60Hz (Worldwide Voltage) Power Consumption ≤20W Dimension 430W x 380D x 125H mm (Includes Footers) Package Dim 610 x 570 x 275 mm Package Content DAC only. No power cord & remote control. Weight 19.0 Kg Color Silver / Black
