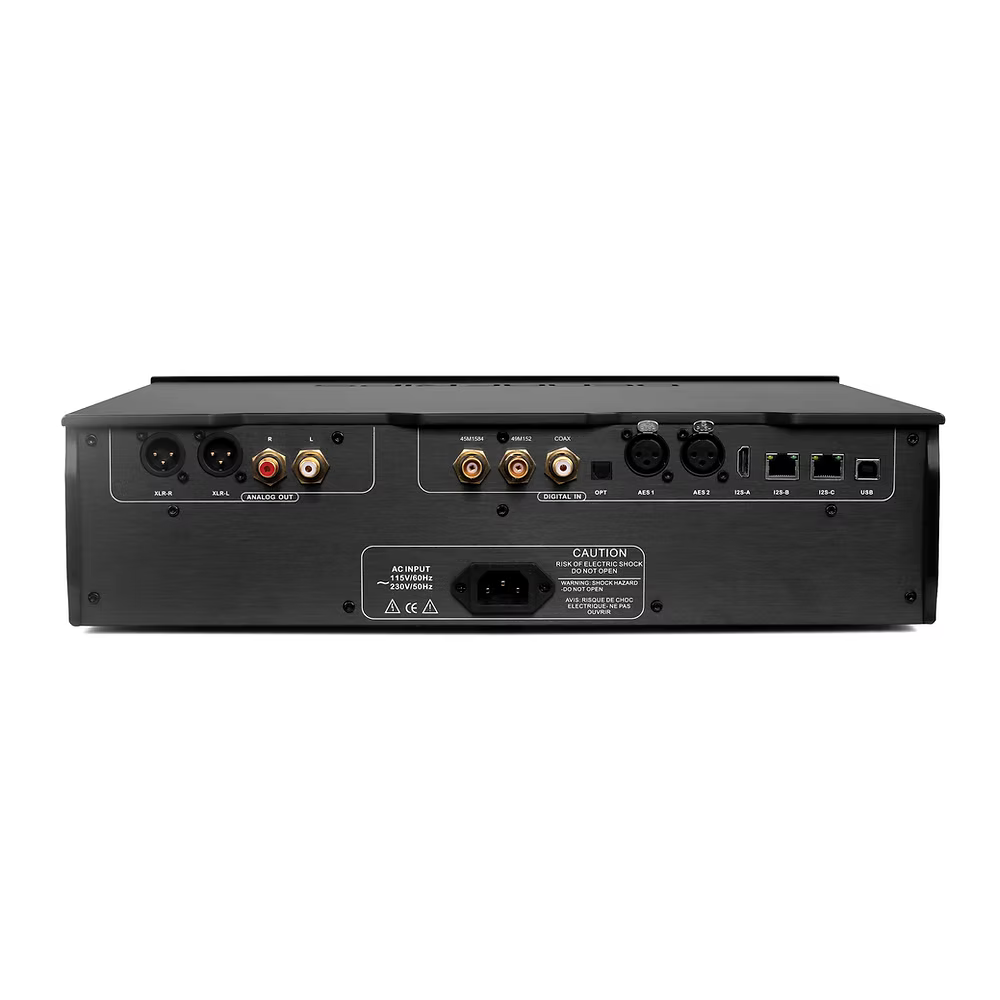

DENAFRIPS VENUS 15th DAC Featuring a new-generation circuit architecture, enhanced with flagship-level technology, the system achieves deep and accurate sound reproduction. Exquisite Dnd Minimalist DAC Design Equipped with a high-precision audio clock output interface, paired with audio devices featuring external clock input, offering audiophiles a more advanced synchronized clock system for enhanced performance. VENUS 15th And VENUS 12th Transformer Comparison Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable reliable, and pure power source. The VENUS 12th uses two 80W single-crystal copper transformers, while the VENUS 15th now uses one 80W and one 250W single-crystal copper transformer, which results in superior sound quality for the VENUS 15th. High-End Custom Rhodium-Plated Power Terminal Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable, reliable, and pure power source. Specifications R-2R DAC Proprietary R2R + DSD Architecture True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) Matched Precision Thin Film 0.005% R-2R Network Arrays Highlight Encapsulated Ultra Low Noise Power Supply High-end Oven Controlled Crystals OCXO Total isolation of Digital and R-2R Boards Adaptive FIFO Buffer and Reclocking DSD1024, PCM1536 Supports On USB & I²S Input Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Input Supports Sharp/Slow Filters Option I²S Pinout Configuration I²S DSD Channel Swap Configuration DSD DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input DSD1024 / 45.1584MHz * On USB & I²S Input Only PCM 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input 1536kHz* On USB & I²S Input Digital Input Coax via RCA TOSLink x 1 AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported) USB2.0 Type B I²S via HDMI LVDS I²S via RJ45 LVDS I²S via RJ45 LVCMOS Analog Output RCA at 2.2Vrms, 625 Ω XLR at 4.4Vrms, 1250 Ω Sampling Mode Non-Oversampling NOS Oversampling OS AC Power Requirement 100-240VAC, 50/60Hz (Worldwide Voltage) Power Consumption ≤20W Frequency Response 20-40KHz -0.2dB THD+N 0.001% S/N Ratio 127dB Dynamic Range >132dB Stereo Crosstalk -110dB Dimension 430 x 380 x 105 mm(without feet） Weight 19 Kg Colour Silver / Black
