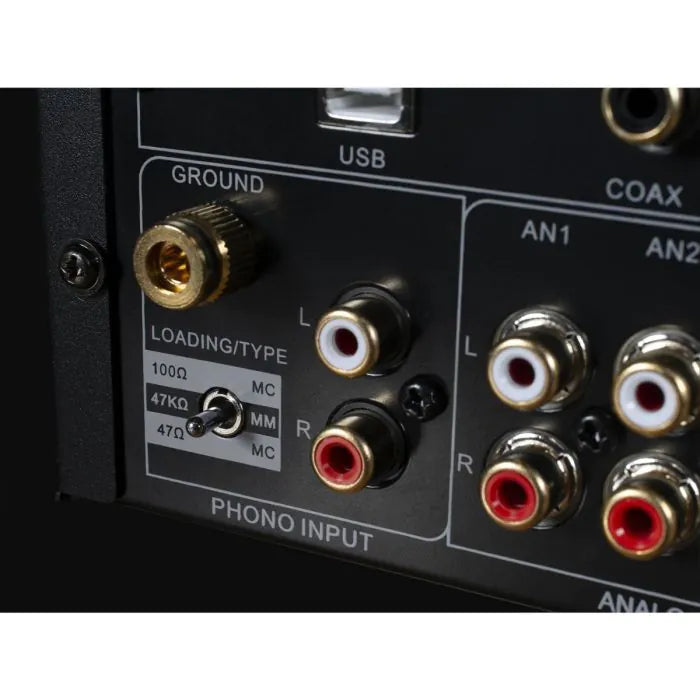

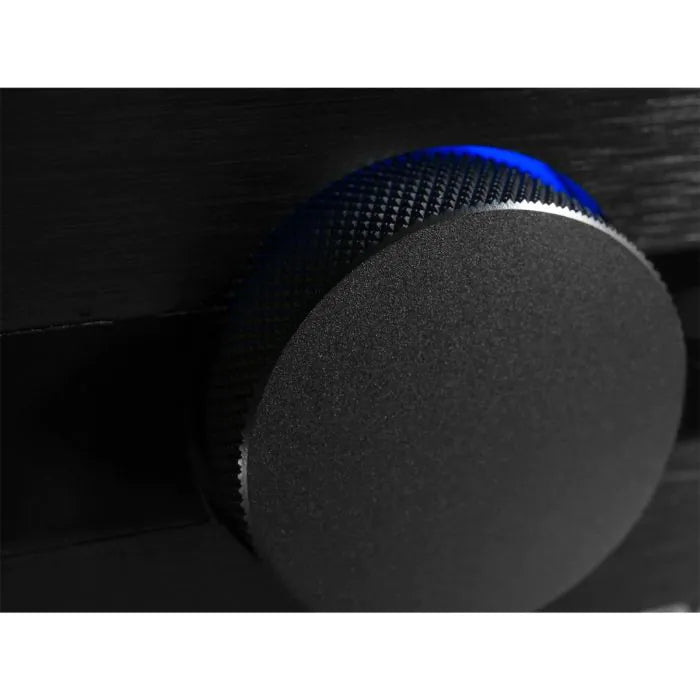

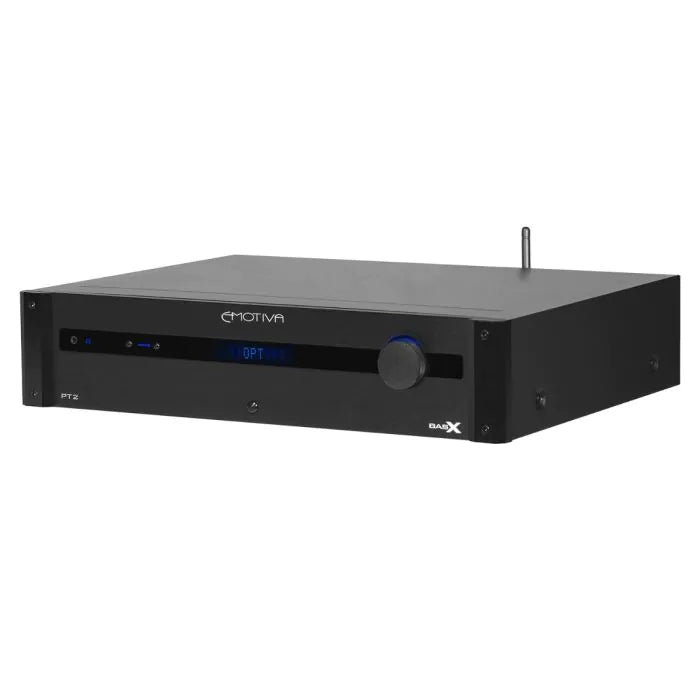

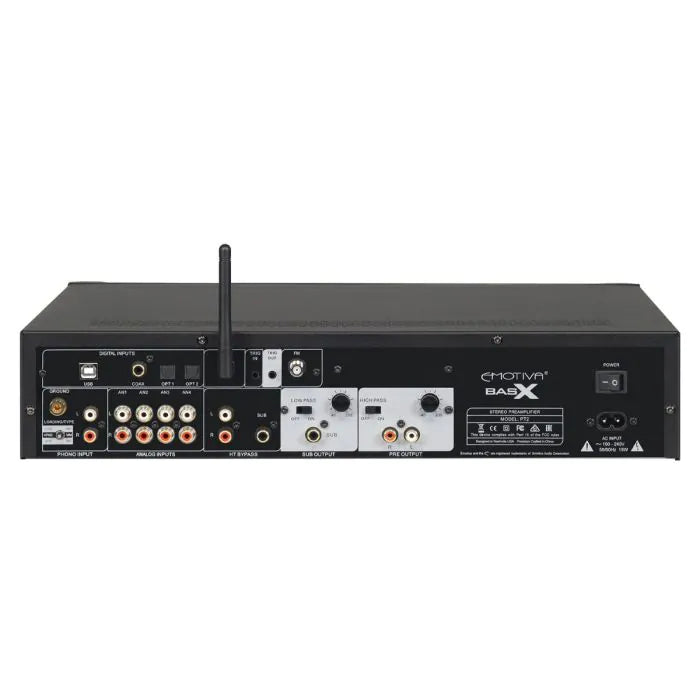

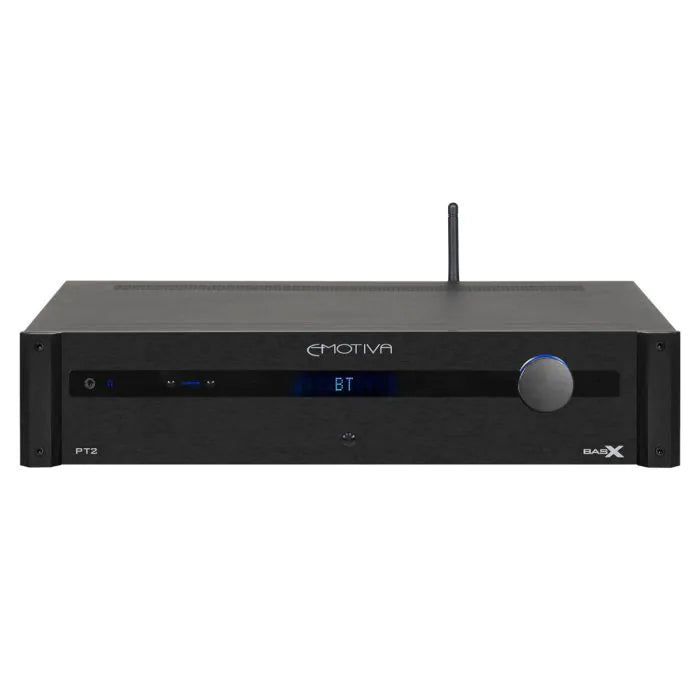

BasX PT2 • High-quality audio and video processing • Convenient control options for easy use • Compact and stylish design • Unmatched immersive surround sound The BasX PT2 enables you to experience the flexibility and superb sound quality you can achieve with separate audiophile components at a surprisingly affordable price. The PT2 is a high-performance stereo preamplifier, which includes a high-performance stereo FM tuner, a generous number of inputs for line-level analogue sources, a built-in DAC with plenty of digital inputs for all of your digital audio sources, including a high-resolution asynchronous USB input and a built-in AptX HD capable Bluetooth receiver, and a high-performance phono preamp that supports both moving magnet and moving coil cartridges. The PT2 can be operated via the simple front panel controls, or by the included infrared remote control. The intuitive menu system makes the PT2 simple to configure and operate, and the large bright blue VFD display on the front panel is easy to read and shows you exactly what’s going on at all times. Match the PT2 with a power amplifier and a pair of speakers for a great-sounding stereo system or use the comprehensive active Bass Management system to add a powered subwoofer and build a complete audiophile quality 2.1 channel system. The new BasX PT2 builds on the legacy of the PT-100 and PT1, and adds some important features, to bring you the next step in the evolution of affordable audiophile components. The PT2 offers more inputs, a complete active analogue Bass Management system, an FM tuner that allows you to tune FM stations directly from the remote control, a set of Home Theatre Bypass inputs, and a sleek modern design aesthetic. If you’ve been waiting to experience the flexibility and performance of separate components then now is the time. Key Features Sound Quality First The BasX PT2 is a high-quality audio device with an optimized circuit layout, low distortion, wide bandwidth, and a silent noise floor. It uses pure analogue inputs for switching, volume, and tone control, and precision digital conversion is provided by the Analog Devices AD1955 24/192k DAC. The built-in FM tuner has 15 station presets and a Mono mode for easy listening to even weak stations. Flexible Input and Output Options The PT2 is a high-performance audio system with multiple inputs, including analogue and digital, and a built-in Bluetooth receiver. It supports sample rates and bit depths up to 24/192 and features an independent headphone amplifier for high-quality signal. The PT2 can be used in two-channel systems with separate outputs for main speakers and a powered subwoofer, or in a high-performance 2.1 channel system with separate outputs for main speakers and a powered subwoofer. It also features a built-in high-performance Bluetooth receiver and active 12 dB/octave Linkwitz-Riley filters. The built-in Bluetooth receiver supports Bluetooth 5 and AptX and AAC. Controls That are Both Convenient and Familiar The BasX PT2 is a versatile audio system with a large, easy-to-read blue VFD display that provides configuration information and can be dimmed for intimate listening. Its flexible menu system allows easy access to all important features. The front panel features a Volume Control knob with precision-crafted knurling and a soft blue glow from the active light, or you can control the output level from your chair using a remote control. The unique Balance control adjusts both channels simultaneously, ensuring constant sound levels. The intelligent Volume control remembers settings on headphone output and main outputs, ensuring no surprises when connecting and disconnecting headphones. Bass and Treble controls provide a familiar way to adjust the system to your liking. The FM Tuner allows you to tune FM stations manually or assign favourite stations to channel presets. All features can be operated from the front panel controls or the included infrared remote control. Great Sound: Now and For Years to Come The BasX PT2 is a rugged, top-quality computer with a heavy steel 2RU chassis and solid-milled aluminium front panel, ensuring long-lasting trouble-free service due to its top-quality construction, including double-sided FR4 circuit boards and SMD construction. Universal Line Voltage Operation The BasX PT2 has a universal-voltage power supply that can operate on any voltage from 100 VAC to 240 VAC and will automatically configure itself to match your local line voltage. Specification Size and Weight Dimensions (WxHxD) 432mm x 86mm x 343mm Weight 5.44kg Inputs and Outputs Analogue Inputs 4 pairs – stereo analogue line level inputs (Analogue 1 thru Analogue 4) 1 pair – stereo phono inputs (switchable; moving magnet or moving coil) 1 set – Home Theatre Bypass inputs (front main channels plus subwoofer) Tuner – FM (with external antenna input; 15 station presets) Digital Inputs 1 – digital coax (S/PDIF); 24/192k 2 – digital optical (Toslink); 24/192k 1 – digital USB (DAC input); 24/192k 1 – Bluetooth receiver up to 96k (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included) Preamp Outputs 1 pair – line level main outputs (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analogue high-pass filter with cutoff configurable between 40 Hz and 200 Hz) 1 – summed subwoofer output (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analogue low-pass filter with cutoff configurable between 40 Hz and 200 Hz) 1 – high-performance stereo headphone output Analogue Performance (line level) Maximum output level 4 VRMS Frequency response 5 Hz to 50 kHz +/- 0.04 dB THD+noise <0.001% (A-weighted) IMD <0.004% (SMPTE) S/N ratio >120 dB Crosstalk <90 dB Analogue Performance (phono) Analogue performance (phono) Frequency response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve THD+noise <0.015% (MM; A-weighted); <0.06% (MC; A-weighted) S/N ratio >78 dB (ref 5 mV; MM); > 58 dB (ref 0.5 mV; MC) Gain (ref unity gain on main outputs at 1 kHz) 44 dB (MM); 55 dB (MC) Load impedance 47 kOhms (moving magnet); 47 Ohms or 100 Ohms (moving coil) Analogue Performance (headphone) Power Output 8 Ohms: 23 mW / channel 33 Ohms: 90 mW / channel 47 Ohms: 127 mW / channel 150 Ohms: 145 mW / channel 300 Ohms: 114 mW / channel 600 Ohms: 75 mW / channel Digital Performance Frequency response 5 Hz to 20 kHz +/- 0.15 dB (44k sample rate) 5 Hz to 80 kHz +/- 0.25 dB (192k sample rate) THD+noise <0.003% (A-weighted; all sample rates) IMD <0.007% (SMPTE) S/N ratio >110 dB ref rated output Trigger Trigger Input Accepts inputs between 5V and 12V AC or DC Trigger Output 12 VDC Controls and Indicators Power Rocker switch; rear panel Standby One front panel pushbutton Two front panel pushbuttons Input Select; menu operation One front panel knob Volume; Tuning; menu operation Display High visibility blue alphanumeric VFD display (dimmable) Remote Control Compact full-function infrared remote control (AAA batteries required) LEDs Amber Standby LED; blue illuminated legends for Input buttons and Headphone output Mechanical Power Requirements Universal SMPS which accepts anywhere between 100 VAC and 240 VAC
