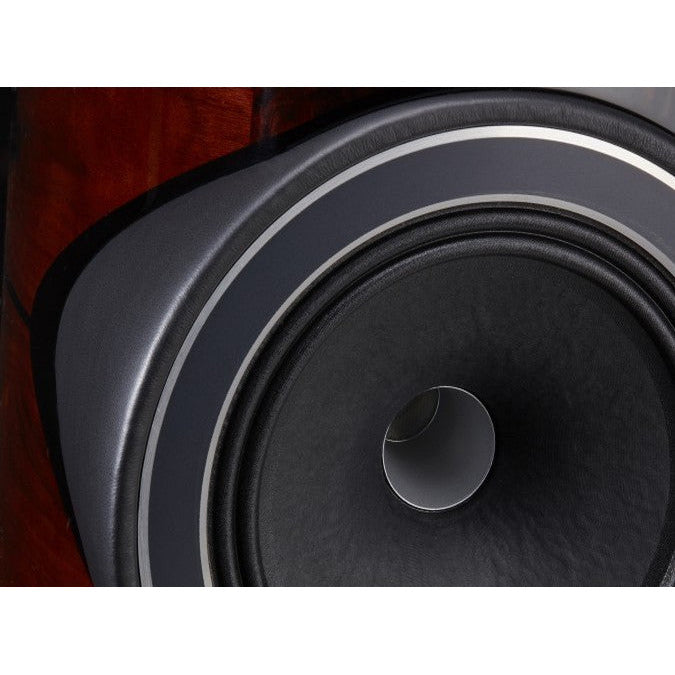

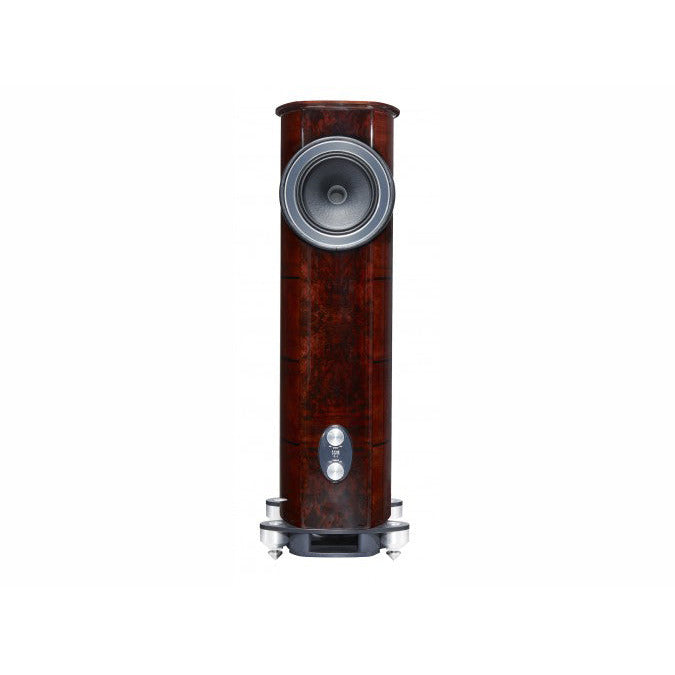

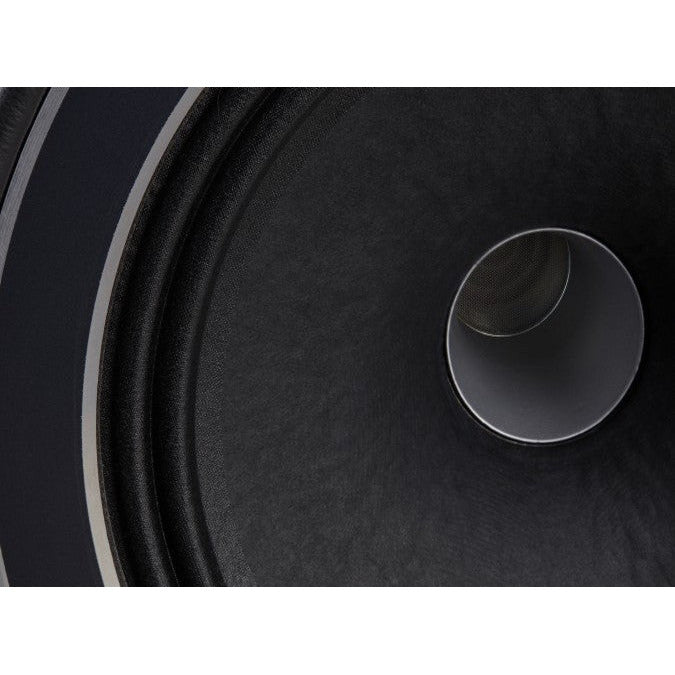

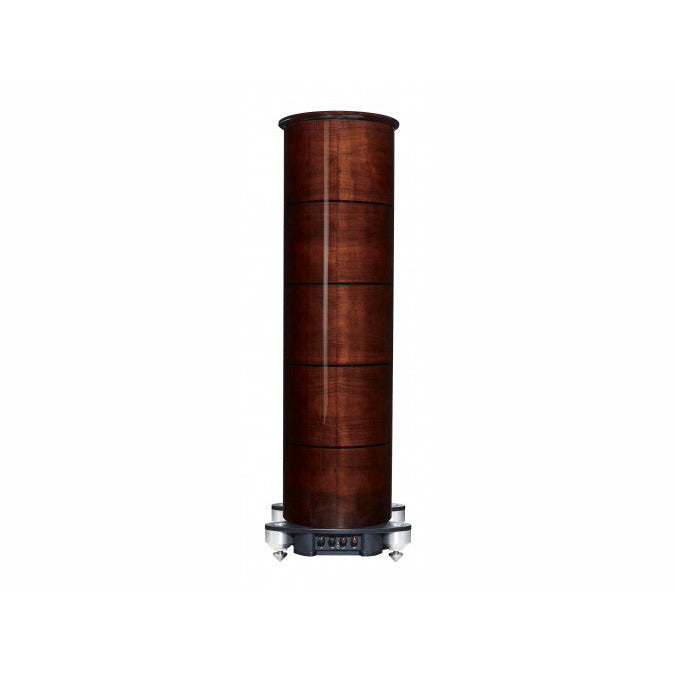

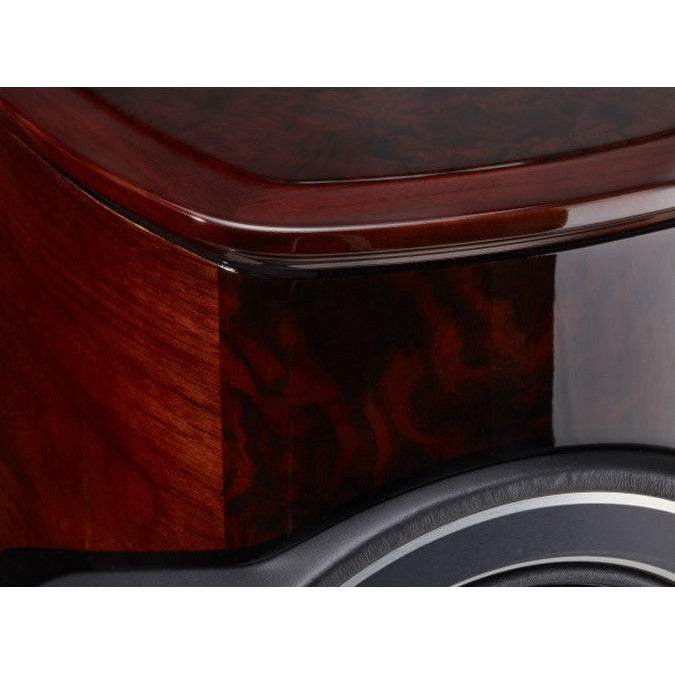

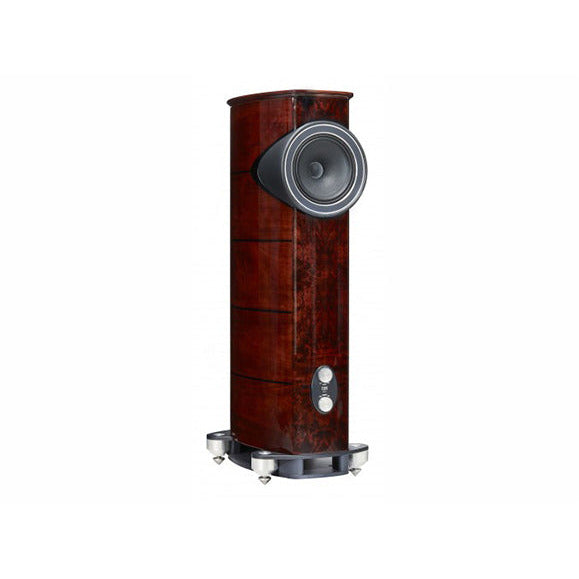

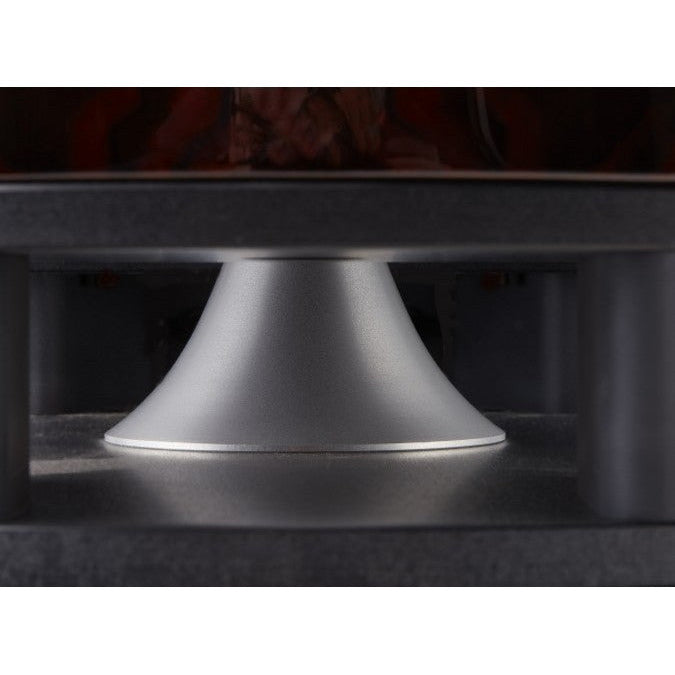

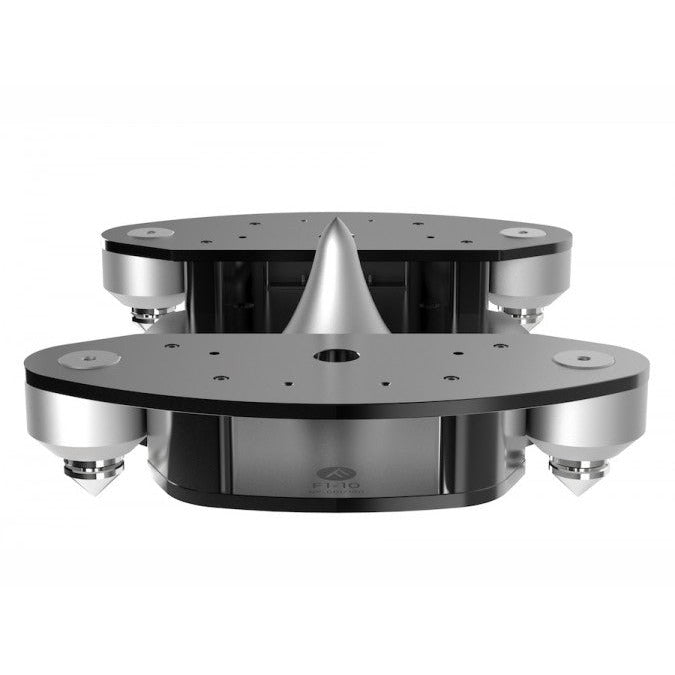

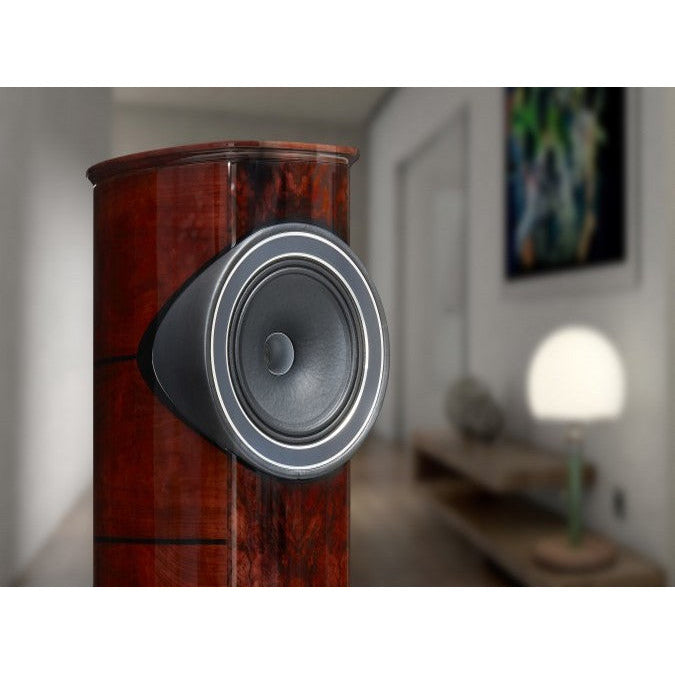

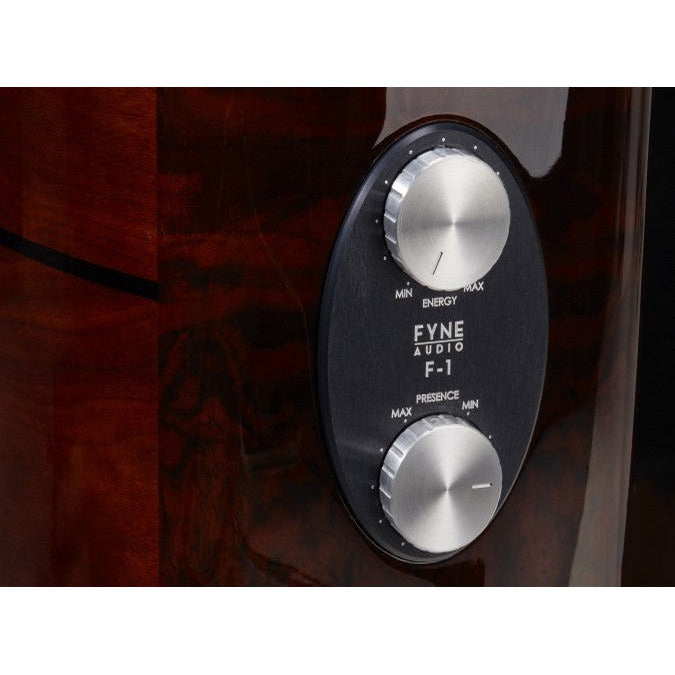

The F1-10S distils Fyne Audio’s decades of HiFi point source loudspeaker expertise into a design of breath-taking acoustic performance and eye-watering beauty. Its 250mm (10″) IsoFlare driver and twin cavity BassTrax ported cabinet deliver bass down to 28Hz while the 75mm titanium dome compression tweeter offers seamless, time aligned HF response to over 26kHz. The F1-10’s very high sensitivity (94dB/W) ensures exceptional dynamic range and compatibility with the widest range of amplifiers from single ended triode valve models to the highest power solid state designs. The BassTrax porting and high quality potentiometer controls for HF energy and presence ensure the F1-10 will deliver optimum performance irrespective of room size or placement. Available in traditional lacquered burr walnut finish with plinth top, the F1-10 offers exemplary finish and a bold statement in loudspeaker design for the audiophile. Specs System Type 2 way, downwards firing port with BassTrax Tractrix diffuser Recommended amplifier power (Watt RMS) 20 – 280 Continuous power handling (Watt RMS) 140 Sensitivity (2.83 Volt @ 1m) 94dB Nominal impedance 8 Ohm Frequency response (-6dB typical in room) 28Hz – 26kHz Drive unit complement 1 x 250mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm titanium dome compression tweeter, neodymium magnet system Crossover frequency 750Hz Crossover type Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated System adjustments High frequency energy (750Hz – 26kHz) +/-3dB Presence (2.5kHz – 5.0kHz) +/- 3dB Dimensions – HxWxD 1191 x 405 x 581mm (46.9 x 15.9 x 22.9”) Weight – Each 57.7kg Finishes Piano Gloss Walnut Notes: Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements.
