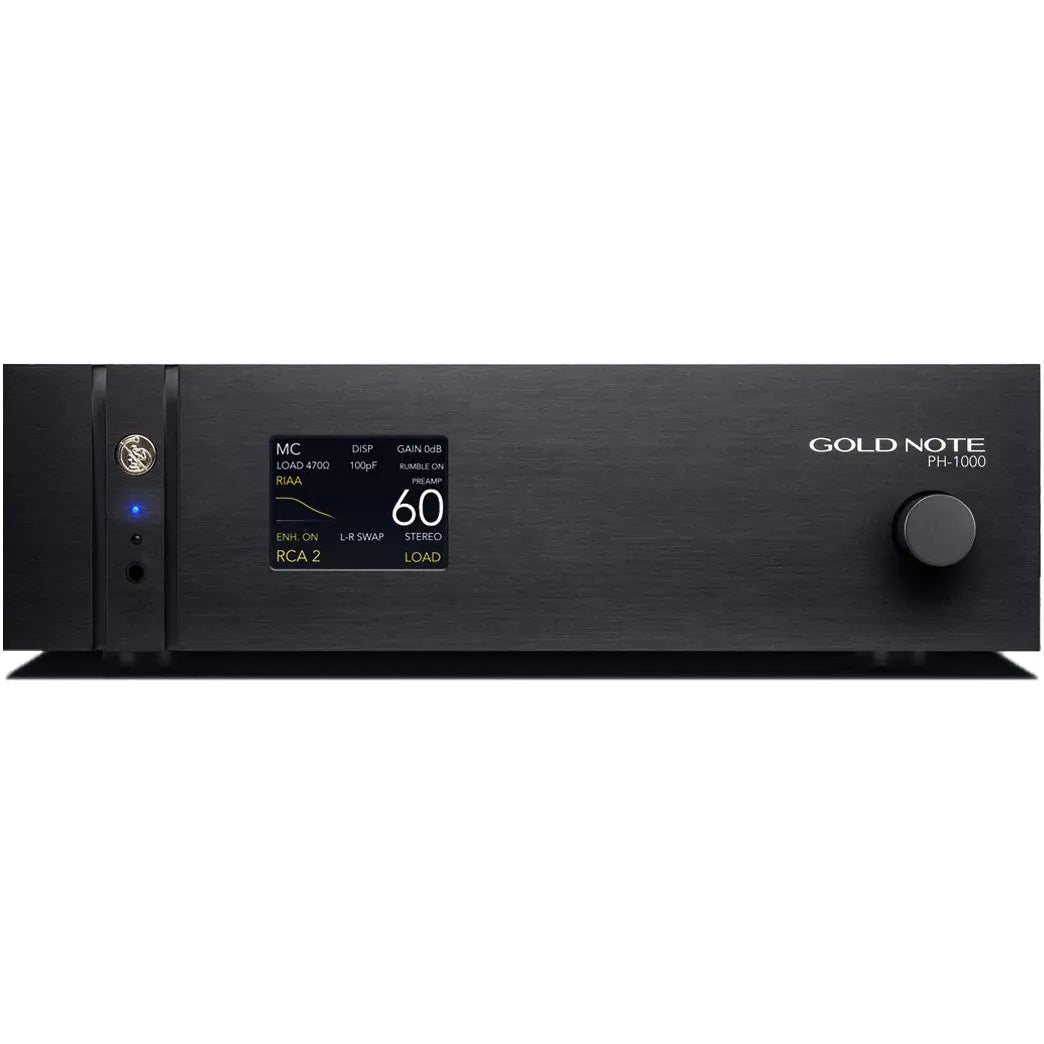

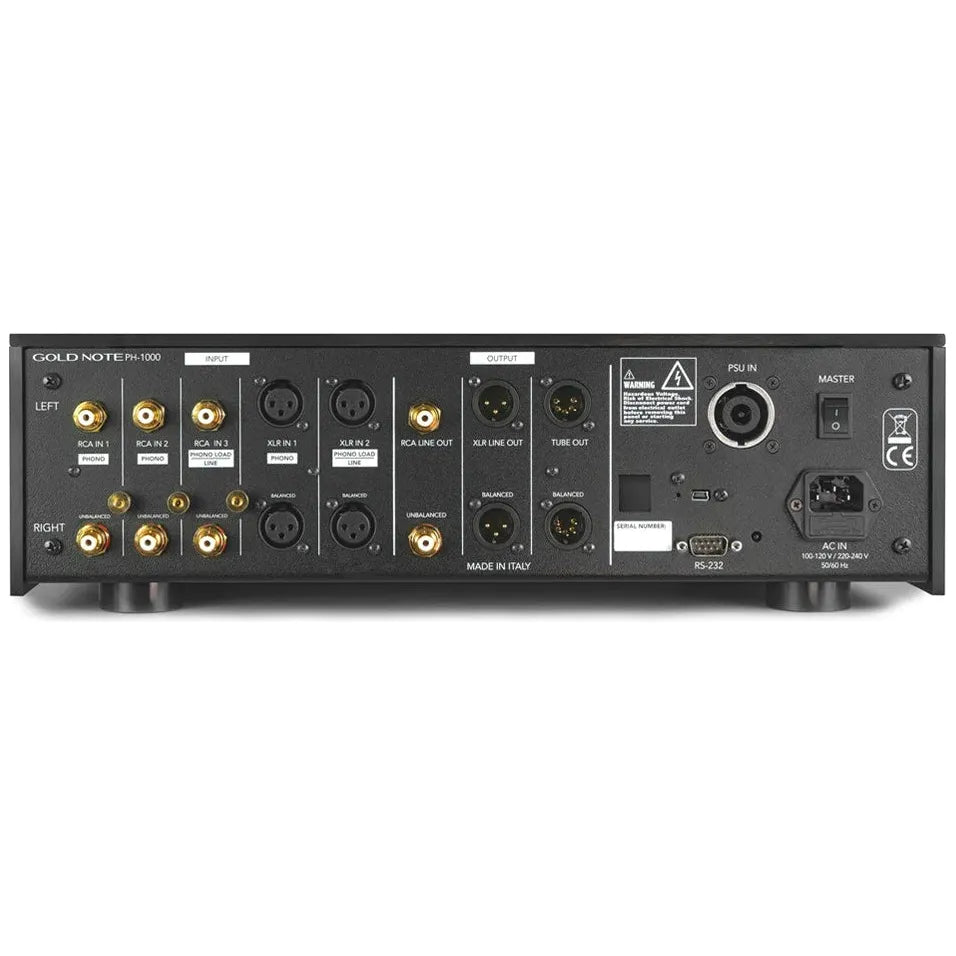

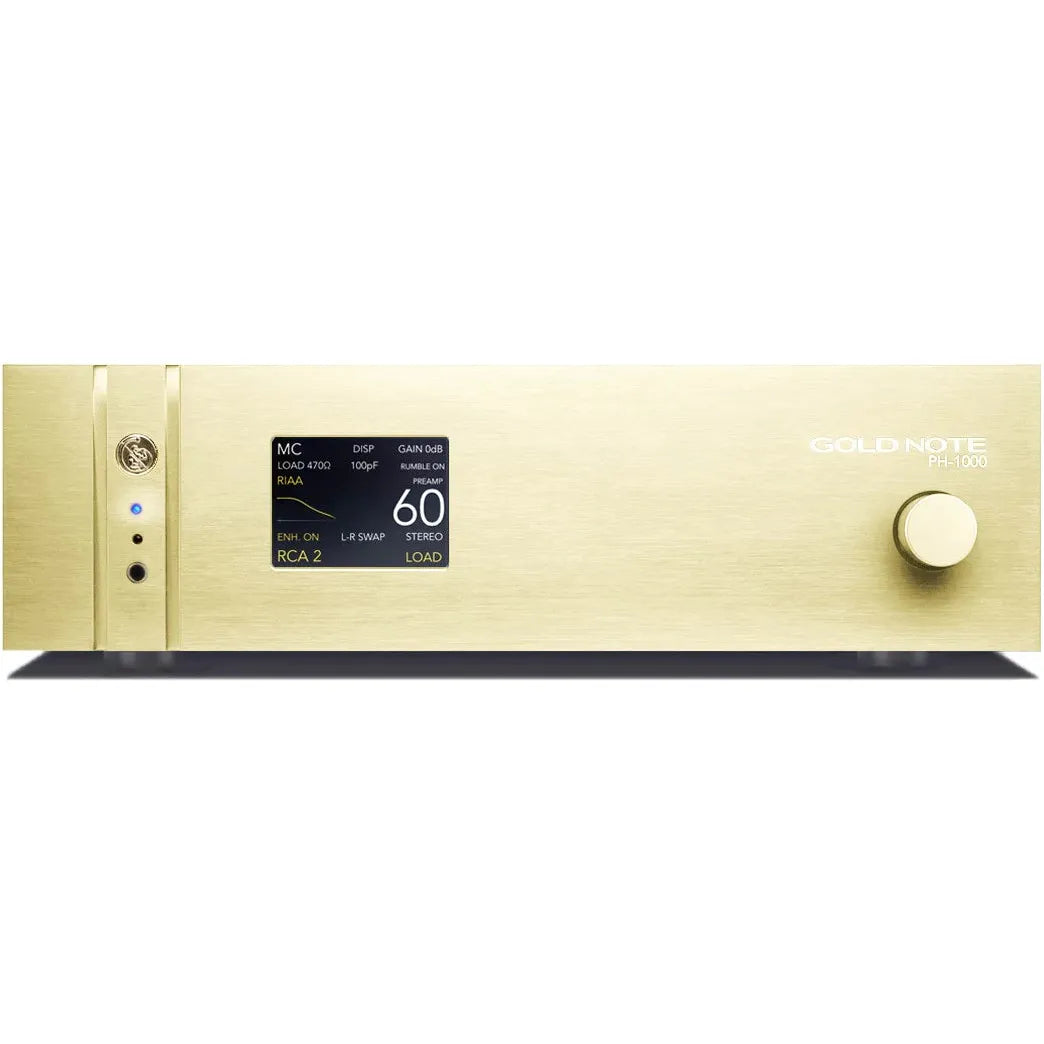

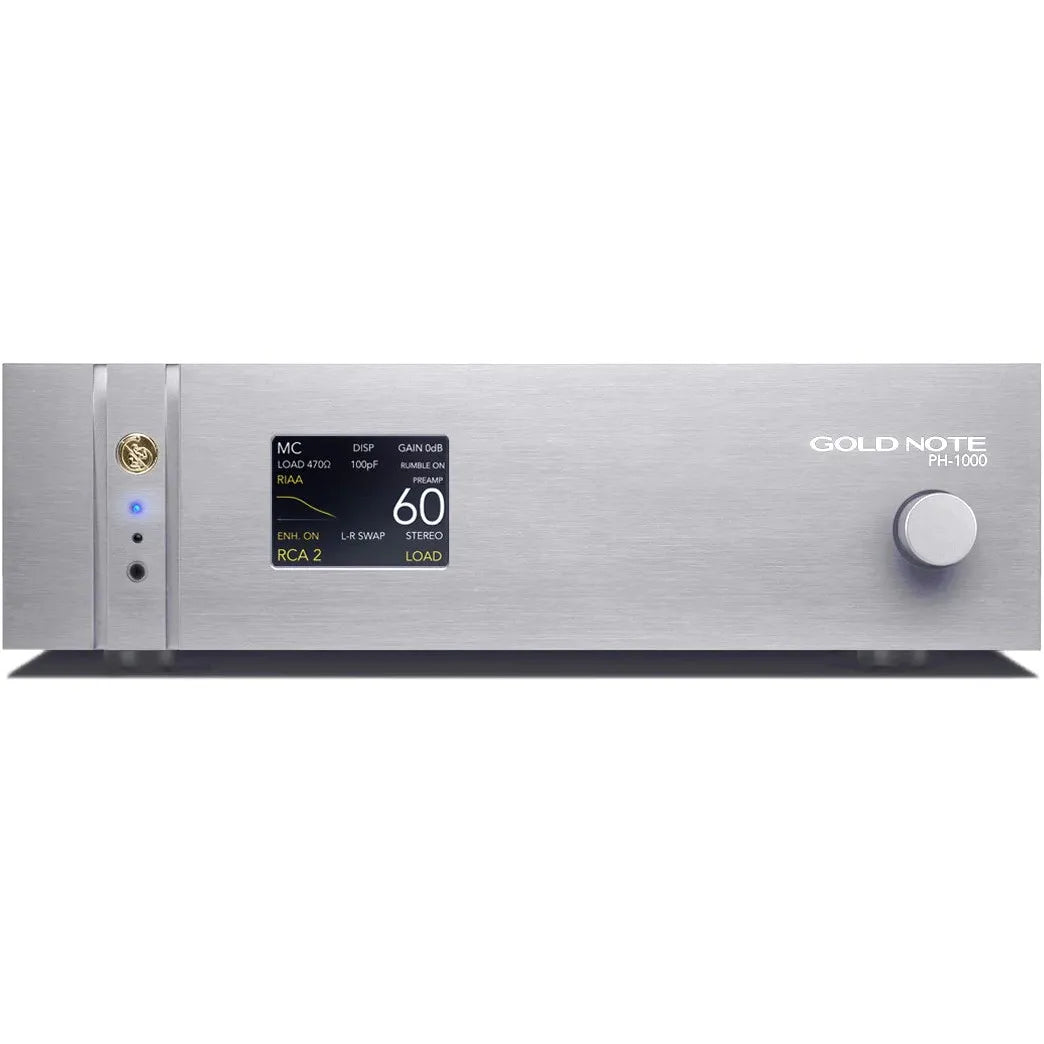

With 14 Gain levels and 12 Load levels, as well as 7 Capacitance options dedicated to MM cartridges, it is the ideal phono stage for high-performance analogue systems, capable of driving even the most exotic cartridges with perfect synergy, making the PH-1000 a professional instrument for high-end studio recording. On top of that, you can change settings and make ultra-fine adjustments, including the EQ curve, simply by using the SKC and the display as you are playing music. Our innovative technology allows the best ease of use while preserving entirely the sound quality as it works in the analogue domain: the interface is digital and independent from the audio path, which is completely analogue. The result is an ultra-low noise phono stage with high gain and no audio filters. All the functionalities are in fact managed through discrete audio-grade components and sealed single switches, always shortening the signal path to deliver superior audio quality and extract even the finest details from the vinyl record. Powered by our custom firmware, the PH-1000 can be easily updated via computer when necessary. MAXIMUM FLEXIBILITY The PH-1000 offers 3 independent inputs, two RCA and one XLR. There are also 2 other inputs, one RCA and one XLR, that can be used either for the external load plugs for even finer control of the Load or as line inputs on the PH-1000 with Preamp. Add the other functionalities, such as the Headphone Output, the Stereo/Mono control with phase inversion, the L/R Channel Swap, and the Rumble Subsonic Filter, and here you have it, the most advanced phono stage on the market. HIGH-QUALITY COMPONENTS The level of quality meets the highest standard throughout the entire production: from the aluminium ultra-solid chassis machined with precision to the electronic components and circuitry that undergo strict QC computer-controlled tests. 40+ EQ CURVES RIAA, Capitol, Columbia/CBS, Deutsche Grammophon, Decca London USA, Decca London UK, and Decca Mono 78rpm, Epic, HMW, Mercury, RCA Victor, Philips, Elektra, L’Oliseau-Lyre, Parlophone, and more. Each curve can be “enhanced” with our proprietary technology inspired by the Neumann Cutting Lathe for superior dynamic and musicality. TOTAL CONTROL The PH-1000 shows every detail on the colour display powered by our proprietary firmware. With the SKC (Single Knob Control technology) and the display, you have an intuitive system to easily control the phono stage and quickly make fine adjustments without even interrupting the playback. HEADPHONE OUTPUT You can now enjoy the shortest audio path ever with the PH-1000, your turntable, and your headphones – that’s all you need for the audio signal to go from the vinyl directly into your headphones without the need for additional stages. MODULAR DESIGN For the most demanding audiophiles, the PH-1000 can also be further enhanced with our external power supply PSU-1250 / PSU- 1000, or even the external tube output stage TUBE-1012 / TUBE-1006, to reach the highest level of musical realism in terms of dynamic, details, and imaging. MAIN FEATURES FREQUENCY RESPONSE – 20Hz – 20kHz EQ CURVES – 18 EQ curves; 4 custom EQ curves all with Enhanced option @ +/- 0.3dB max. THD (TOTAL HARMONIC DISTORTION) – <0.01% max. SIGNAL TO NOISE RATIO - 100dB DYNAMIC RANGE - 110dB INFRASONIC FILTER - 10Hz/36dB octave (ON/ OFF) MONO/STEREO - Stereo, Stereo 180°, Mono, Mono 180°, Mono L CHANNEL SWAPPING - R/L, L/R IR RECEIVER - For multifunctional remote control INPUTS AND OUTPUTS AUDIO INPUTS - 2x unbalanced RCA (0.1mV MC up to 8.0mV MM); 1x balanced XLR (0.1mV up to 1.0mV MC) LOAD - 12 options for RCA [100kΩ, 75kΩ, 47kΩ, 33kΩ, 22kΩ, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω + external load]; 8 options for XLR - [4k7Ω, 1kΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω + external load] CAPACITANCE - OFF, 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF GAIN - 40dB MM to 65dB MC with 7 options [0dB, ± 3dB, ± 6dB, ± 9dB] LINE INPUTS LEVEL - 2Vrms (standard) up to 2,5Vrms (max) AUDIO OUTPUTS - 1x unbalanced RCA @1V; 1x balanced XLR @4V; 1x Output Stereo for Tube (balanced GN) for optional TUBE-1012 & TUBE-1006 OUTPUT IMPEDANCE - Unbalanced 100Ω; Balanced 300Ω OUTPUT LEVEL - 2Vrms standard up to 2,5Vrms max POWER POWER CONSUMPTION - 30W PSU INPUT - For external power supply Gold Note PSU-1250 & PSU-1000 POWER SUPPLY - Dual-Mono linear power supply 100-240V with auto sense, 50-60Hz FUSE - 2A F DIMENSIONS AND WEIGHT DIMENSIONS - 430mm W | 135mm H | 375mm D; 630mm W | 350mm H | 600mm D – boxed WEIGHT - Kg. 12 – net; Kg. 17 – boxed
