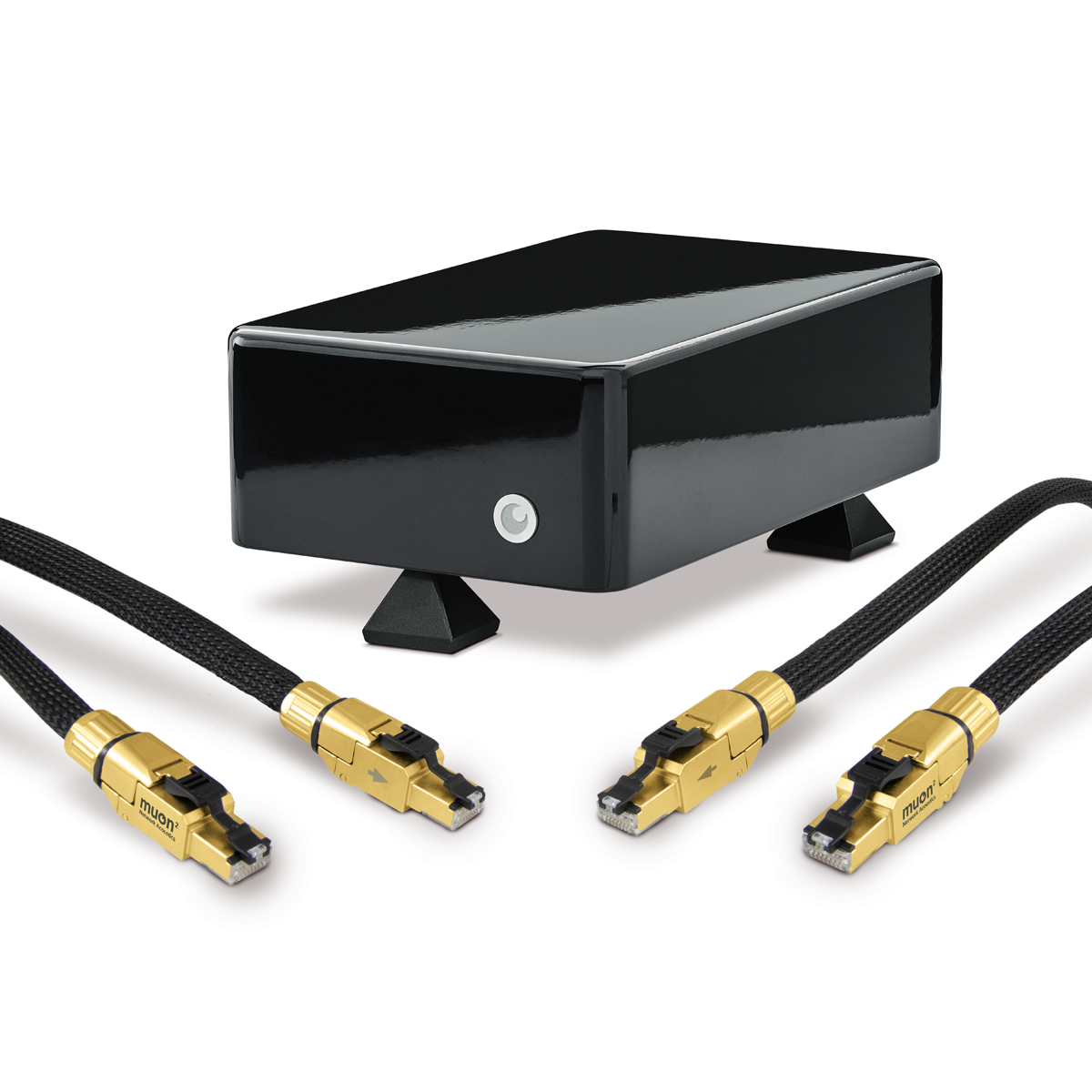

Network Acoustics’ reference passive filtering system, incorporating the Muon2 Ethernet Filter , 1.0 and 1.5m Muon2 Streaming Cables , and a set of 3 Pyramid Isolators , is designed to be the perfect final connection between the Router or Switch and the streamer or server. Description Inside The Muon2 Streaming System Network Acoustics’ reference passive filtering system, incorporating the Muon2 Ethernet Filter , 1.0 and 1.5m Muon2 Streaming Cables , and a set of 3 Pyramid Isolators , is designed to be the perfect final connection between the Router or Switch and the streamer or server. The Muon2 Ethernet Filter Four stage noise filtering: Building on the widely acclaimed Eno2 and Muon Pro, the Muon2 Ethernet Filter employs a new 8-core architecture designed to operate at speeds up to 2.5 Gb/s. At its core is a new four-stage cascaded filtering system, with elements working in series and parallel to remove two distinct forms of unwanted electrical noise: Differential Noise, which interferes with the data, and Common Mode Noise, which radiates EMI through the system. The new circuit design also prevents self-induced electrical ringing and features a fully integrated grounding system to draw noise away from the signal path. Co-Founder Rich Trussell says: “With the Muon2 Filter and Streaming Cable, we set out to consider every component part holistically. The circuit must remove as much noise as possible from the analogue signal that represents the ones and zeros of the digital code, without losing or damaging the signal itself. But just as important are vibration control, enclosure material, isolation, and the cable that makes the final connection with the Streamer. Get all of those right and the result is something truly special.” solid beechwood enclosure: From work on previous products Network Acoustics identified that micro-vibration has a big impact on sound quality , so they established that the choice of enclosure material would be critical to achieve the level of performance they wanted for Muon2. After testing a wide range of metals and polymers, they turned to wood, settling on beech as the best material for absorbing vibration without colouring the sound . To realise their design, Network Acoustics partnered with high-end speaker maker Auer Acoustics, who precision-mill each enclosure from a single piece of beechwood. Co-Founder Rob Osbourn says: “Beech is made up of short, tightly compacted fibres that act like a bundle of microscopic acoustic springs, which force vibrational shockwaves to spread across countless cellular boundaries and be rapidly absorbed. Beech neutralizes background vibrational noise making it the perfect choice for Muon2’s enclosure.” Pyramid Isolators: Supporting the enclosure, Network Acoustics developed their new Pyramid Isolators. Hand-machined from hardened silicate minerals to a sharp point, they perfectly isolate the Muon2 Ethernet Filter from surface-borne vibration. The audible effect is greater focus, finer micro-detail, and a more stable soundstage The Muon2 Streaming Cable Two Muon2 Streaming Cables (1.0 and 1.5m) are included with The Muon2 Streaming System to guarantee a perfect connection between your switch or router, the Muon2 Ethernet Filter and your streaming device The cable features Network Acoustics’ new reference high-purity conductor, damped with multi-layered cotton and silk dielectric to absorb micro-vibrations. It is finished with NA’s proprietary shielding grounded only at the source end, and is terminated with ‘Telegärtner Japan’ gold connectors for a flawless connection. With its uniquely effective combination of materials and design, Muon2 guarantees the best possible levels of noise rejection, eliminates cross-talk, and controls vibration to deliver absolute transparency and beat-perfect timing. Co-Founder Rob Osbourn says: “Streaming may still seem to some like a simple matter of ones and zeros, but whether used alone or alongside the Ethernet Filter, the Muon2 Streaming Cable is as close as we can get to the perfect Ethernet cable and audible proof that designing a cable specifically for streaming audio, to preserve the timing and purity of the signal, can transform a recording into a live performance” Engineered Without Compromise The Muon2 Streaming System is the result of 7-years of listening-led development in noise rejection, materials science, and vibration control. Key innovations include: 8-core architecture designed to work at speeds up to 2.5Gb/s Cascaded four-stage filtering system : series and parallel elements that target both Differential Noise and Common Mode noise Anti-ringing circuit design to prevent self-induced electrical ringing in the signal path Precision-machined solid beechwood enclosure , developed in partnership with speaker cabinet specialists AUER Acoustics Network Acoustics Pyramid Isolators , hand machined from hardened silicate minerals to decouple the Muon2 chassis from external vibration. Fully integrated grounding system to draw noise away from the signal path Dedicated grounding point for use with external grounding devices. Supplied as standard with a 1.0m Muon2 Streaming Cable — Network Acoustics’ new reference Ethernet cable. Finishes: high-gloss metallic black or silver . Streaming First And Last As with all Network Acoustics products, the Muon2 Streaming System is purpose-built to eliminate noise and jitter, preserving the precise timing needed for accurate digital-to-analogue conversion. The result is music with greater detail, space, and a natural sense of flow and openness that makes it sound truly real. With the Muon2 Ethernet Filter and two Muon2 Streaming Cables working together, Network Acoustics deliver a complete reference streaming chain that lets high-end streamers and DACs reveal their full musical potential. Specifications Operating Speed: up to 2.5Gb/s Ethernet Filter weight: 1200g Ethernet Filter dimensions (with feet) : [W] 115 mm x [D] 190 mm x [H] 80 mm Cable Weights: 225 grams (1.0) and 300 grams (1.5m ) Box Contents Muon2 Ethernet Filter 1.0 m Muon2 Streaming Cable 1.5 m Muon2 Streaming Cable 3 x Pyramid Isolators Pyramid Isolator positioning template Quick Start User Guide Certificate of Authenticity
