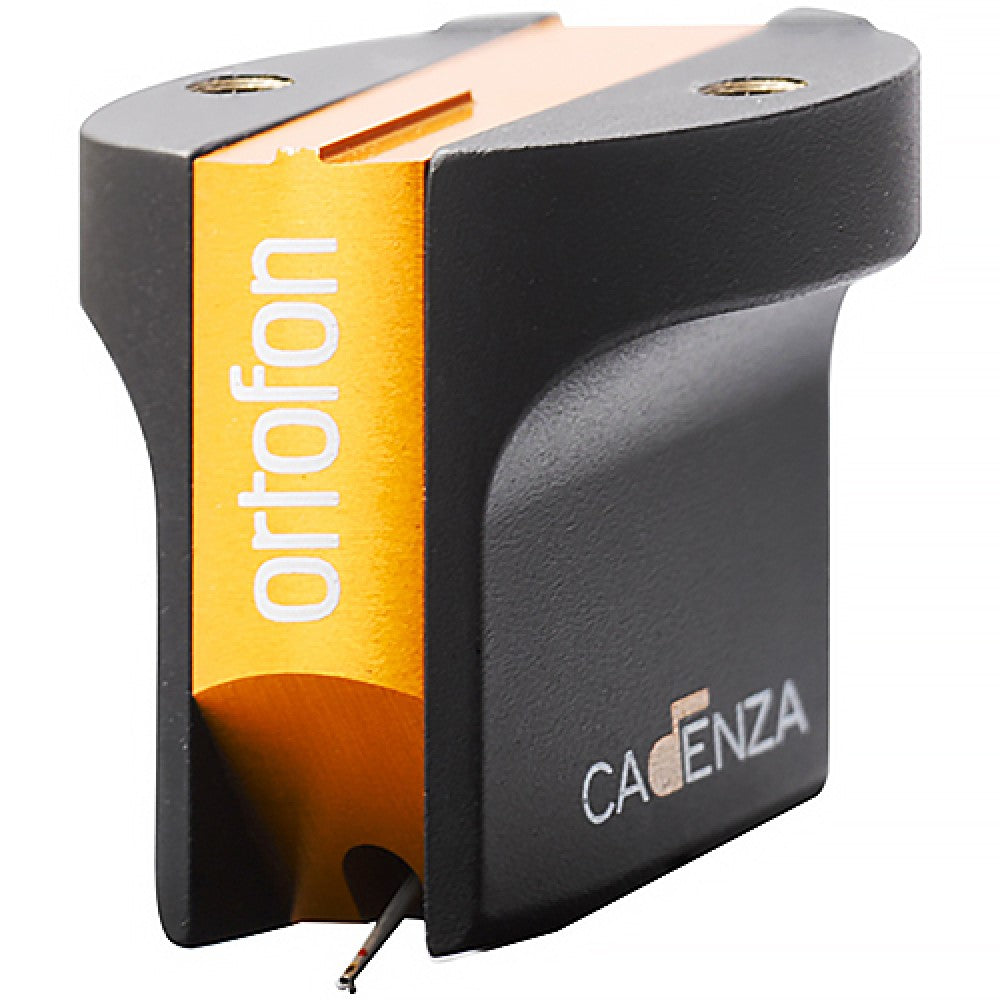

The Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever. The coil wire is the famous Ortofon Aucurum wire, which is gold plated 6NX copper wire. A Field Stabilizing Element, FSE, is used for optimal linearity especially during complex crescendo passages. Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme precision, impact and dynamics. Its stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions. Technical Data: Output voltage at 1 kHz 5cm/sec – 500µV Channel balance – < 1.2 dB Channel separation at 1 kHz - >23 dB Channel separation at 15 kHz – >15 dB Frequency range at -3 dB – 20 Hz – 55 kHz Frequency response 20 Hz – 20 kHz – ±1.5 Tracking ability at 315 Hz at recommended tracking force * – 80µm Compliance, dynamic, lateral – 12 µm/mN Stylus type – Nude Ortofon Replicant Cantilever – Conical aluminium Stylus tip radius – r/R 5/100 Tracking force range – 2.2 – 2.7g ( 22 – 27 mN ) Tracking force recommended – 2.5g ( 25 mN ) Tracking angle – 23° Internal impedance, DC resistance – 5 Ohm Recommended load impedance – 50 – 200 Ohm Cartridge body material – Stainless steel / Aluminium Cartridge colour – Bronze / Black Cartridge weight – 10.7g * Typical value
