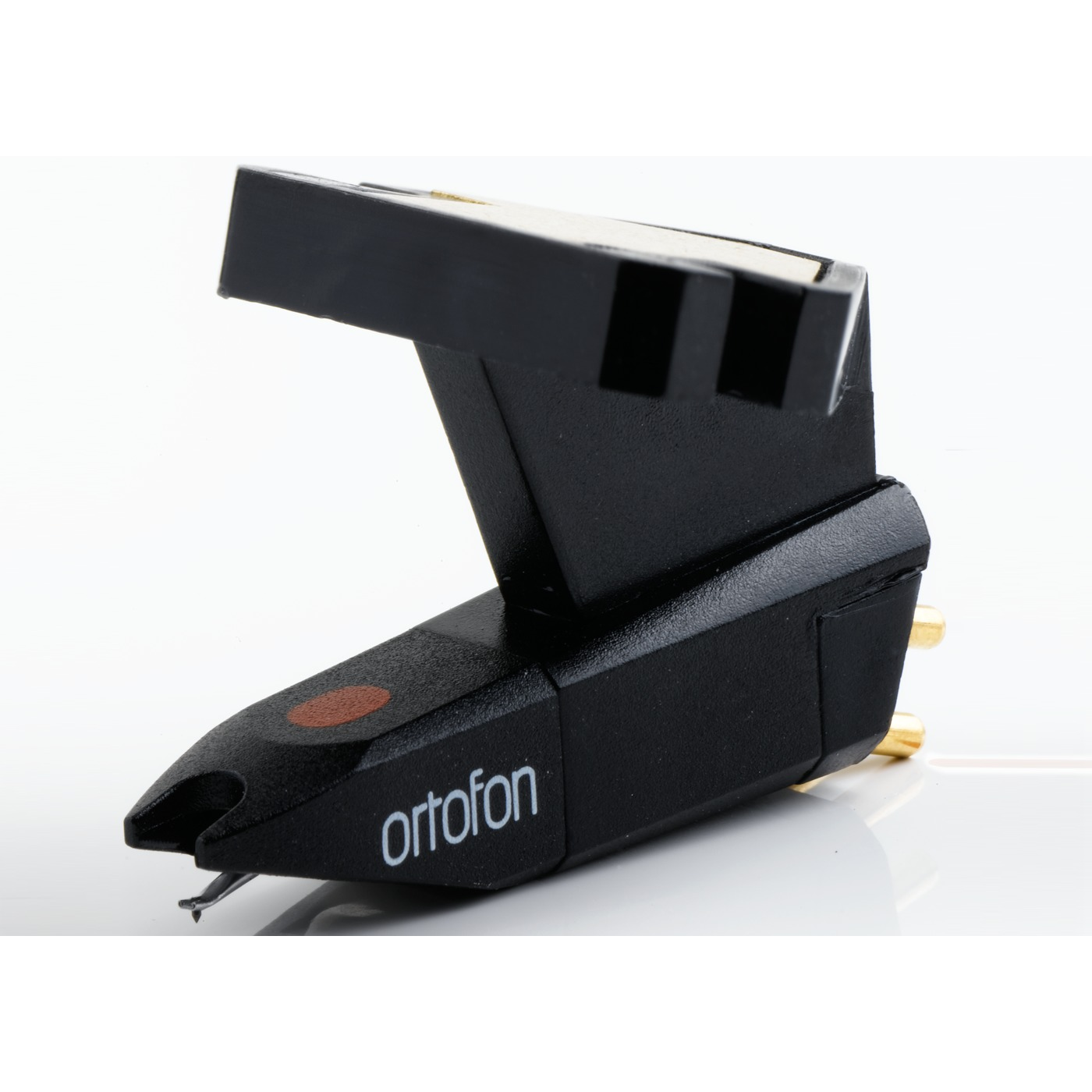

OM Series The OM 5E is a magnetic cartridge (MM) with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications. As previously found on many of our award-winning introductory turntables, such as the iconic Pro-Ject Debut; the OM5E is a highly affordable but very competent true hi-fi cartridge. Using the same body type as the rest of Ortofon’s instantly recognisable OM series, this model is a great accompaniment to your entry-level hi-fi set-up. Please note, any OM-series replacement stylus will fit in this body, including the Stylus 78. Key Features: Introductory overhead mount cartridge Optimised sound reproduction distortion-free playback Elliptical stylus profile Easy tonearm matching Specs Output Voltage (at 1kHz, 5cm/sec): 4mV Channel Balance at 1kHz: 2dB Channel Separation at 1kHz: 22dB Channel Separation at 15kHz: 15dB Frequency Range (at -3dB): 20Hz – 25kHz Frequency Response 20Hz – 20kHz: ± 2dB Tracking Ability at 315Hz: Typically 65μm Compliance, Dynamic, Lateral: 20μm / mN Stylus Type: Elliptical Stylus Tip Radius r / R: 8 / 18μm Tracking Force Range: 1.5 – 2.0g (16 – 20mN) Recommended Tracking Force: 1.75g (17.5mN) Tracking Angle: 20º Internal Impedance / DC Resistance: 750Ω Internal Inductance: 450mH Recommended Load Resistance: 47kΩ Recommended Load Capacitance: 200 – 600pF Cartridge Colour Body / Stylus: Black / Black Cartridge Weight: 5g Replacement Stylus Unit: Stylus 5E
