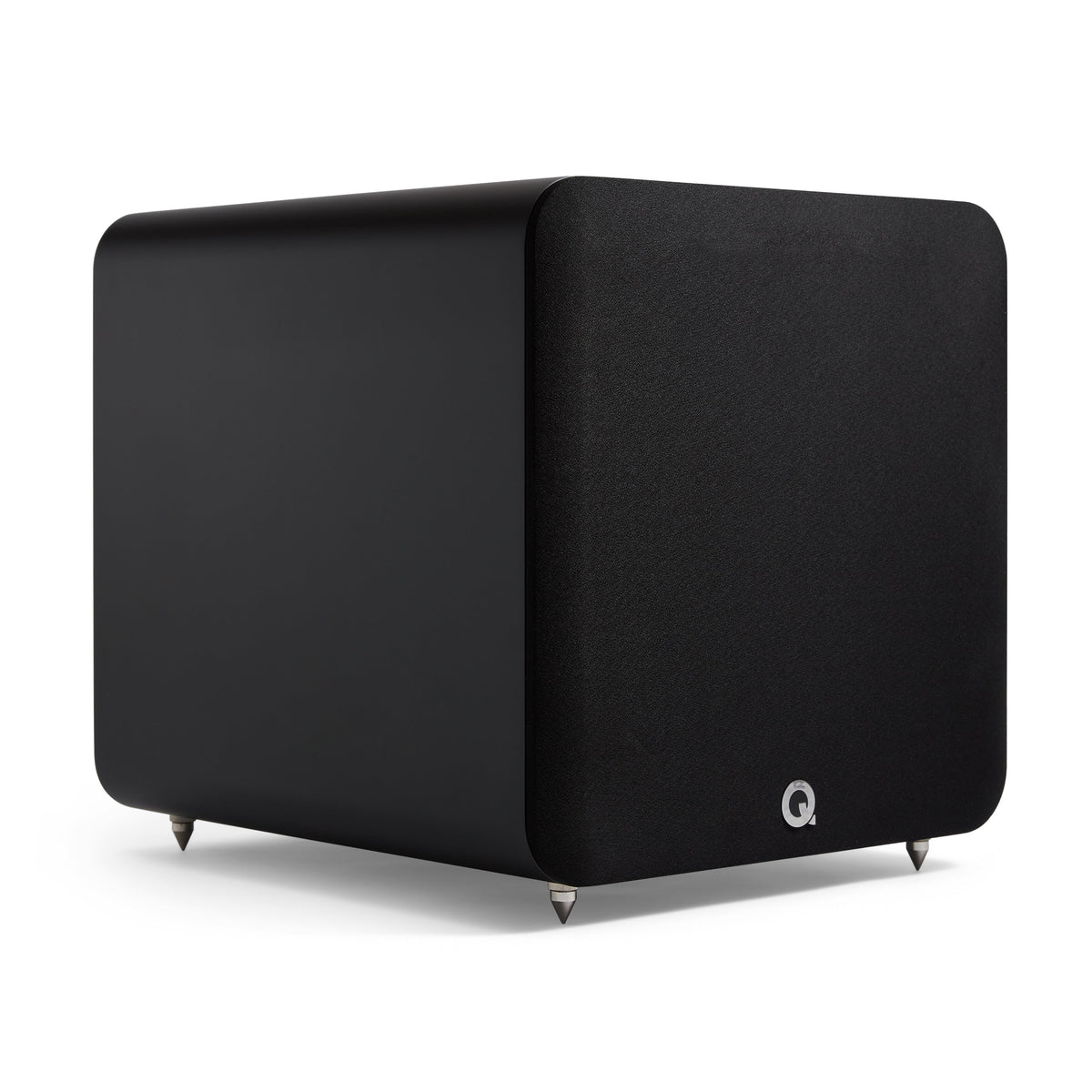

No matter if it’s a stereo set-up or full-on surround-sound cinema system, the Q SUB120 can fill your listening room with that infra-bass Low Frequency Effect you can feel as well as hear. Big room with big speakers? No problem… OVERVIEW Q SUB120 has exceptional bass power to cabinet size ratio. This subwoofer is more powerful than the previous QB 12 model. Digital Signal Processing (DSP) allows easy system and room integration with optimise settings for class-leading, distortion-free performance. Clever, dual phase and delay controls allow the fine-tuning of the signal alignments for flexible room placement. DSP identifies the input signal and automatically adjusts system gain, enhancing performance regardless of the connected source. A low pass filter with frequency adjustment ensures seamlessly integration with any partnering speaker system. A custom-designed amplifier module features four digital power amplifier stages that improves efficiency by dissipating less heat, enhances speaker control, and reduces output impedance. SPECIFICATIONS Enclosure type : Infinite baffle Bass unit diameter : 305 mm (12 in) Effective volume : 44.1 litres Max SPL @ 1 m : 114 dB Frequency response (-6dB) : 28 Hz – 250 Hz Low pass crossover range : 40 Hz – 250 Hz Peak amplifier power : 600 W Continuous amplifier power : 300 W THD @ rated power : 0.09% Input sensitivity (max gain) : 300 mv rms Maximum input level : 2.1 V rms Input impedance : 20 kΩ Noise floor (A wtd) : 50 μV Dimensions (HxWxD) : 400 x 400 x 432 mm (15.7 x 15.7 x 17.0 in) Weight (per loudspeaker) : 22.5 kg (49.6 lbs) IN THE BOX 1 x Q SUB120 Active Subwoofer 4 x Spikes, Locking Nuts and Spike Covers 1 x Mains Cable 1 x User Manual
