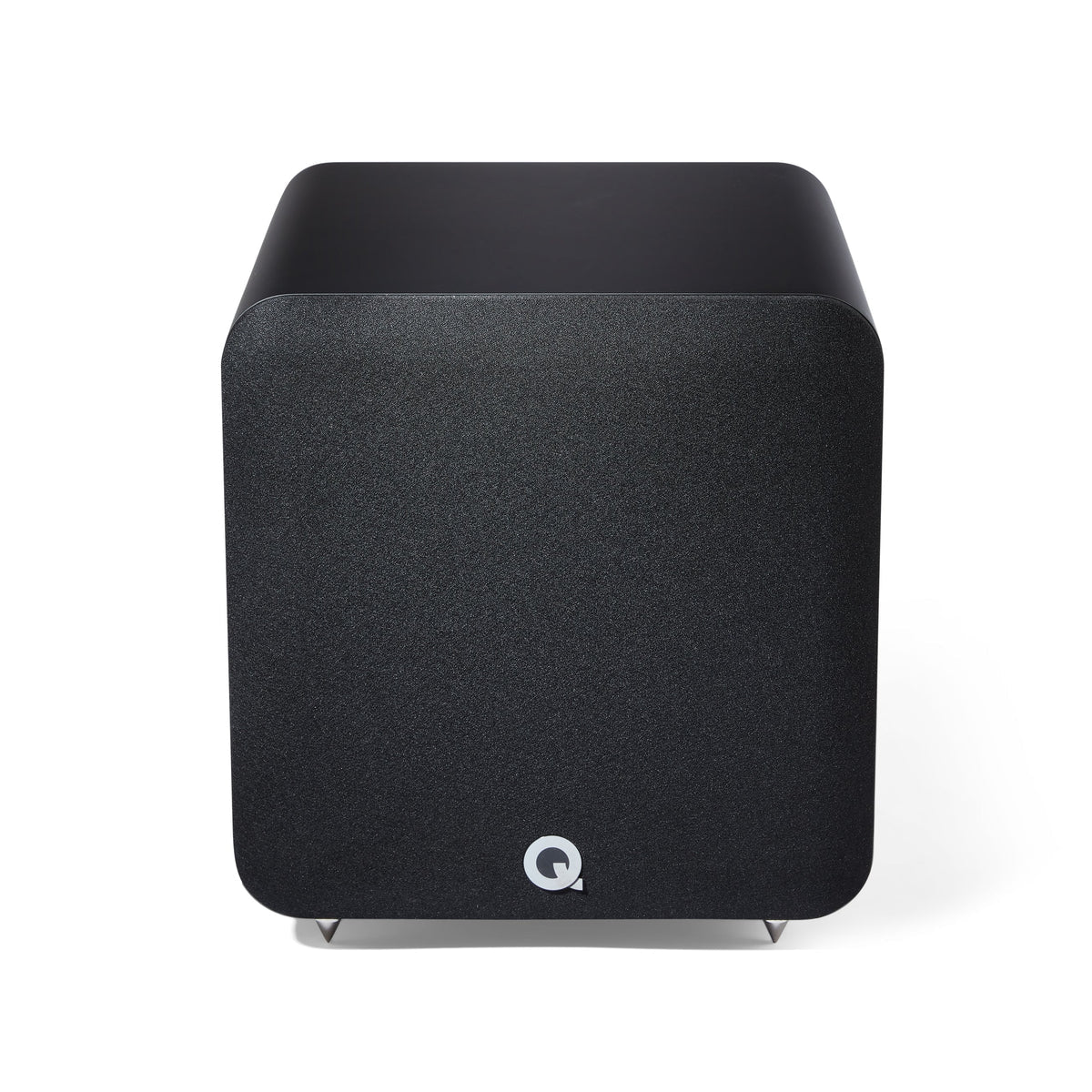

Smaller rooms with smaller speakers still deserve big, well-controlled bass for listening to music or watching movies. The Q SUB80 with its 8in driver is the ideal partner for M20 or M40 active speakers or 3000c and 5000 Cinema Packs in ones or twos. OVERVIEW Q SUB80 has exceptional bass power to cabinet size ratio. Digital Signal Processing (DSP) allows easy system and room integration with optimise settings for class-leading, distortion-free performance. Clever, dual phase and delay controls allow the fine-tuning of the signal alignments for flexible room placement. DSP identifies the input signal and automatically adjusts system gain, enhancing performance regardless of the connected source. A low pass filter with frequency adjustment ensures seamlessly integration with any partnering speaker system. A custom-designed amplifier module features four digital power amplifier stages that improves efficiency by dissipating less heat, enhances speaker control, and reduces output impedance. SPECIFICATIONS Enclosure type : Infinite baffle Bass unit diameter : 203 mm (8 in) Effective volume : 13.9 litres Max SPL @ 1 m : 107 dB Frequency response (-6dB) : 36 Hz – 250 Hz Low pass crossover range : 50 Hz – 250 Hz Peak amplifier power : 400 W Continuous amplifier power : 200 W THD @ rated power : 0.09% Input sensitivity (max gain) : 300 mv rms Maximum input level : 2.1 V rms Input impedance : 20 kΩ Noise floor (A wtd) : 50 μV Dimensions (HxWxD) : 315 x 315 x 347 mm (12.4 x 12.4 x 13.6 in) Weight (per loudspeaker) : 15 kg (33 lbs) IN THE BOX 1 x Q SUB80 Active Subwoofer 4 x Spikes, Locking Nuts and Spike Covers 1 x Mains Cable 1 x User Manual
