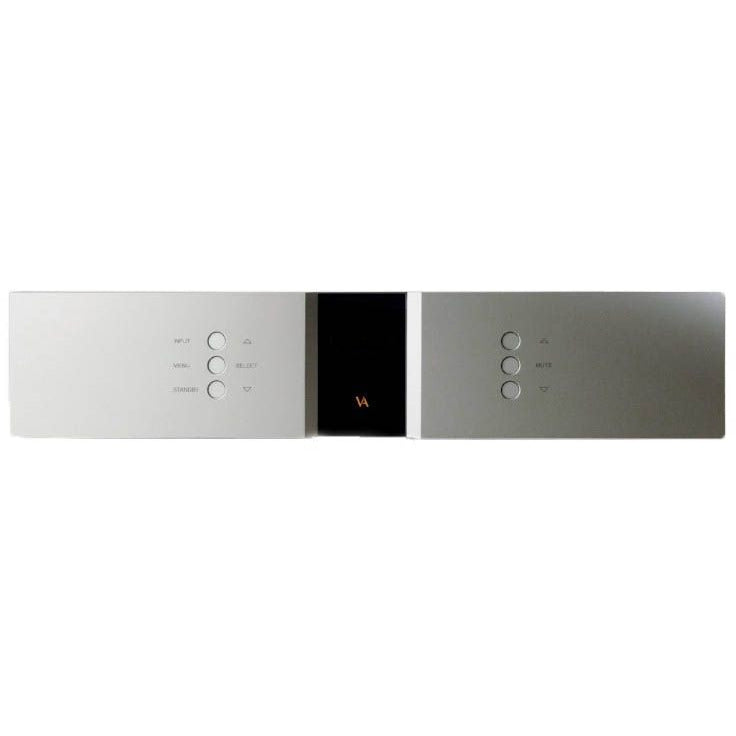

Upgrading from an integrated amplifier to a combination of a line stage with one or more power amplifiers is like shifting to the next gear. No, not your typical switch with a standard manual gearbox! You’re pushing the engine over 7000 rpm. It unleashes its maximum power output. Feel the torque pushing the chasis to its limits. Tires cry out. You take decisive action and flip the paddles on the steering wheel. The double clutch, high precision transmission releases the engine in a split second. Control, ease and tranquility settle in. You are right on track with the RL-102 Line Stage. The RL-102 offers a number of RCA single-ended and XLR balanced inputs to meet your needs; we certainly haven’t run out of inputs yet. It isn’t a large unit measuring 4″ high by 17″ wide by 15″ deep, and we like that. It has a beautiful Scandinavian look and will fit nicely into almost any rack. Specs Input Available: XLR: 3 (L+R) / RCA: 2 (L+R) Sensitivity: XLR: 2/4/8 VRMS / RCA: 2/4/8 VRMS Impedance: XLR: 10KΩ / RCA: 10KΩ Output Available: XLR: 1 (L+R) / RCA: 1 (L+R) Impedance: XLR: 75KΩ / RCA: 75KΩ Frequency response: XLR: +800KHz / RCA: +800KHz Slew rate: XLR: 1000V/ μs / RCA: 1000V/ μs Signal to noise ratio: XLR: > 110dB / RCA: > 110dB THD + noise: XLR: > 0,01% / RCA: > 0,01% Power Consumption Standby: 30 WRMS Operation: 30 WRMS Volume Control Type: Relay controlled / fixed resistor network Gain: -91,5dB to +18dB Dimensions: Height: 100mm x Width: 435mm x Depth: 377mm Weight: 9kg Power Consumption Standby: 30 WRMS Operation: 30 WRMS
