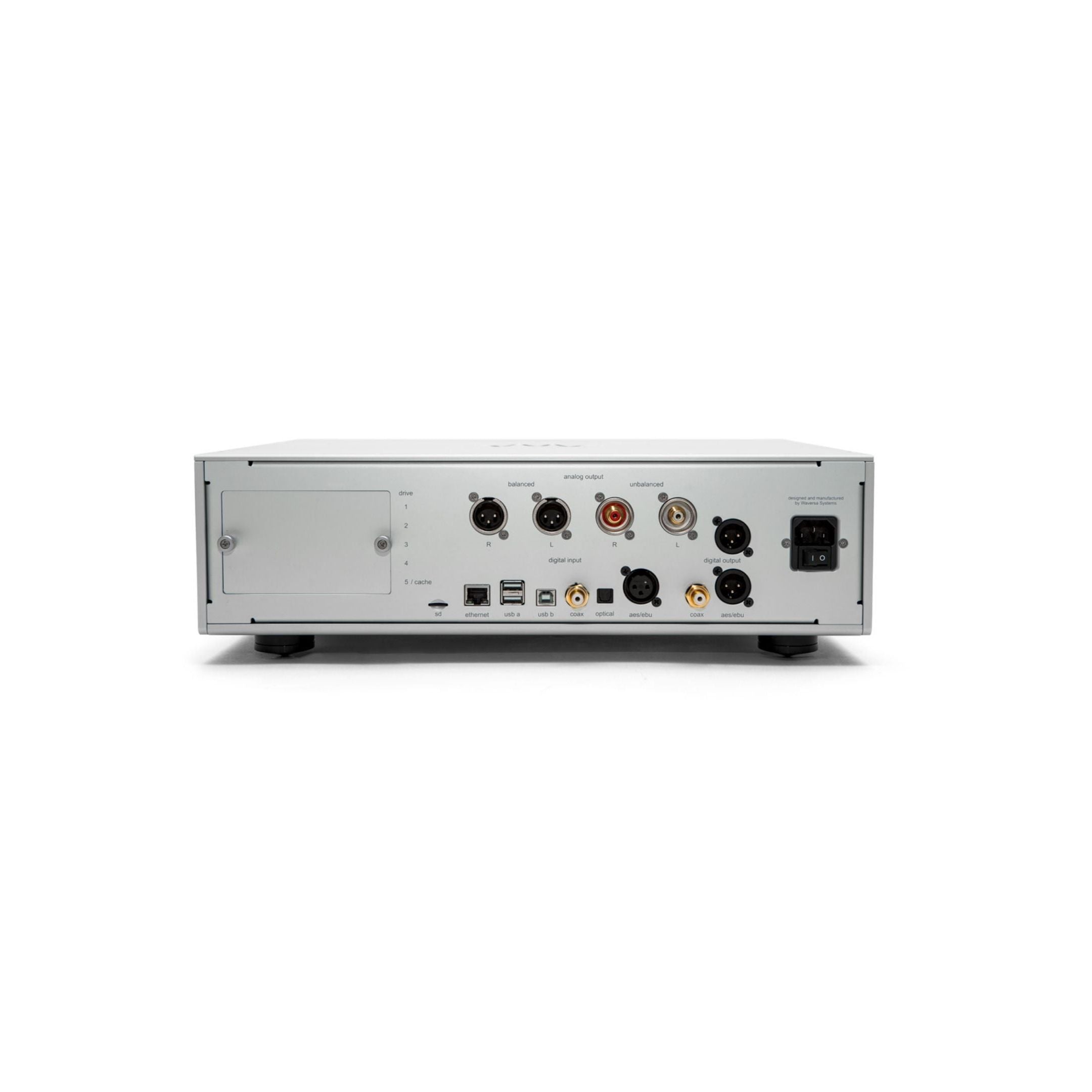

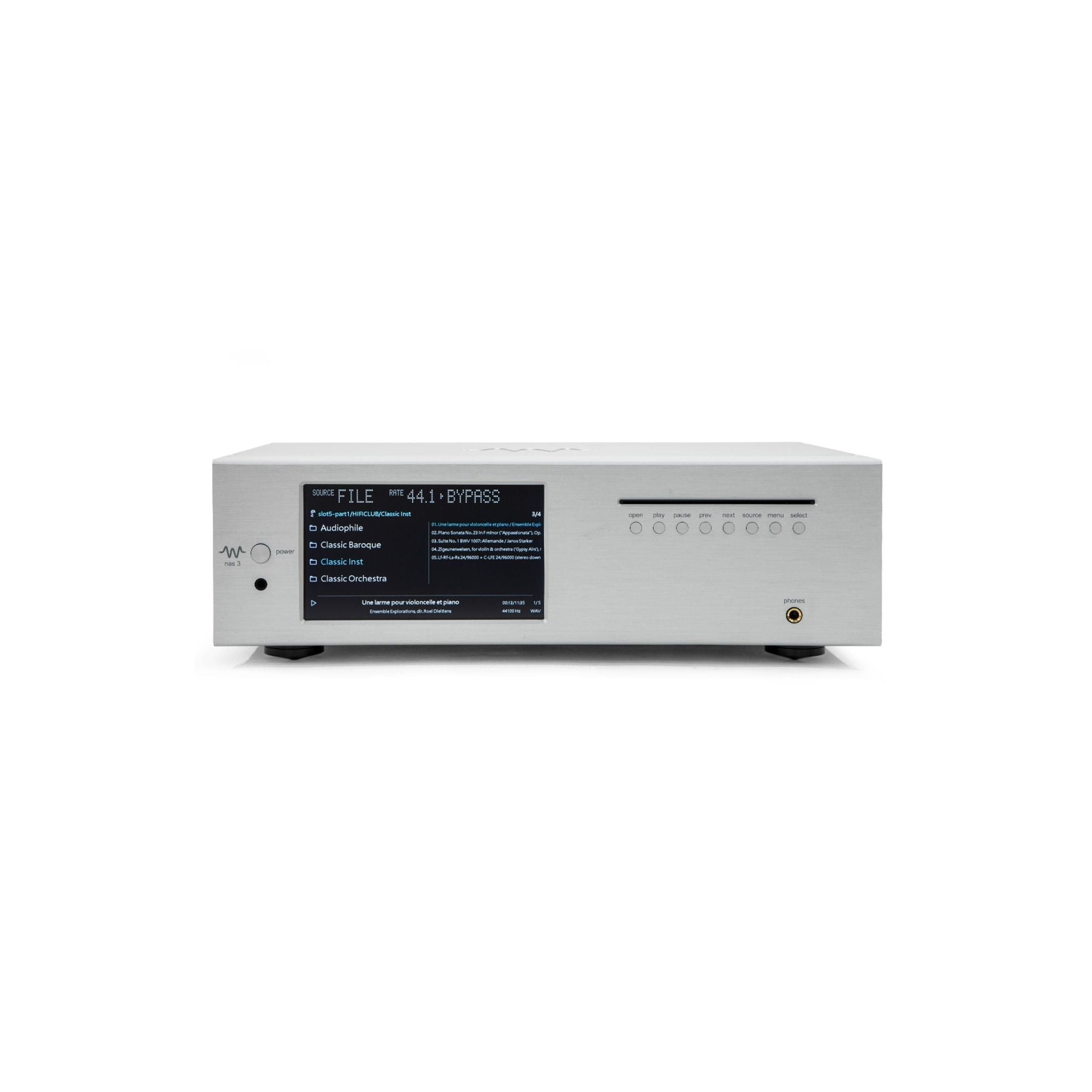

NAS with CD Ripping/Replay, DAC, Roon Ready, DLNA, AirPlay, WNDR, 5 x 2.5” SSD Bays option Main Features Digital Source 7” LCD Display CD Ripping / Replay NAS 5 x 2.5” SDD Bays Roon Ready DLNA Media Server Airplay FM Tuner (RDS) Fully Discrete Headphone Amplifier Fully Discrete Output Buffer Exclusive Technologies WAP – Waversa System Processor (3 Level) WAP-X – Waversa System Processor Extension (3 Mode) WNDR – Waversa Network Direct Rendering WMLET – Waversa Multi-Layer Energy Transfer WUS – Waversa Ultra Sound RES – PCM Enhancement up to x8 Physical Characteristics Chassis: Aluminium Colour: Silver Input: Ethernet (with Native DSD), USB B, Digital Coaxial, Toslink, AES/EBU Output: Balanced XLR, Single Ended RCA, USB-A, Digital Coaxial, FM Antenna, Phones I/O: USB-A, FM Aerial, Micro SD Dimension: W440xD330xH150mm Weight: – 10.5kg / 23.1 lbs. Power supply: Inbuilt 90~240 VAC@ 50~60Hz Supported Audio/Video Formats COAX: up to 192KHz USB/NET: PCM 32/44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 KHz, DSD64, DSD128, DSD 256 (DSD Conversion 3 level) ROON: FLAC, WAV, DSF, DFF, AIFF, ALAC, AAC, MQA UPnP/DLNA Renderer: WAV, AIFF, OGG, FLAC up to 24 bits / 192 kHz FM – 88.0kHz – 108.0kHz Specs Linux 3.2 with ARM Cortex A9/Memory 2GB ESS9038 PRO Based DAC with Full Discrete Analog Output Ultra Low Power Universal Serial Bus Audio Class 2.0 High Precision TCXO Clock 3 x Power Supplies: D/A section, CD drive, HDD Drive 4 Analog Output Level Settings 8 Level Display Setting
