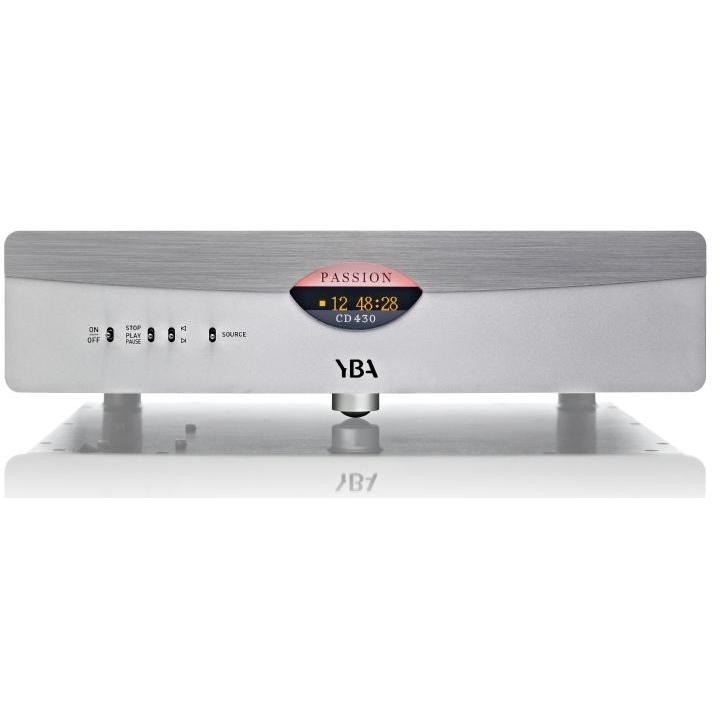

Details The Passion 430 CD Player was added to the range in November 2013, filling the need for those users who wanted to own a Passion CD player but did not have a requirement for a CD transport. Modelled on the Passion CDT450 transport, it has a Cirrus Logic DAC on board. It maintains the same switching array on the front panel as the CDT450 but the rear panel presents an entirely different range of options. With a choice of RCA or Balanced analog outputs, the CD 430 also has a Coaxial output which has its own dedicated on/off switch for use as required. In addition a USB input has been added giving it great versatility. A driver download is necessary if the USB input is being used with your PC – the driver is available by following the link below. S pecifications: System: High end Philips CD-PRO llm with patented Blue Diode design Audio Inputs: CD, USB (USB2.0 High speed, up to 192kHz) Audio Outputs: 1 RCA, 1 XLR, 1 Digital (coaxial) Unbalanced output level: 2.3 V Balanced output level: 4.6 V SNR (RCA/XLR): 110 dB Frequency response: 20Hz – 20kHz (-0.5 dB) THD+N (20Hz – 20kHz): 0.0015% (16bit), 0.0008% (24bit) Drive compatibility: CD, CD-R, CD-RW Power Supply: Linear power supply with high performance UI-Core transformer 160VA Dimensions (w x d x h): 430 x 388 x 118 mm Weight: 12.8 Kg
